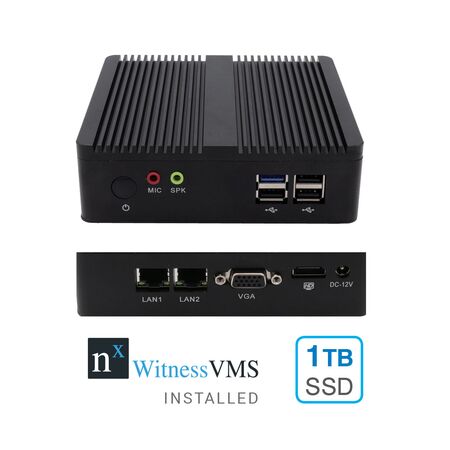

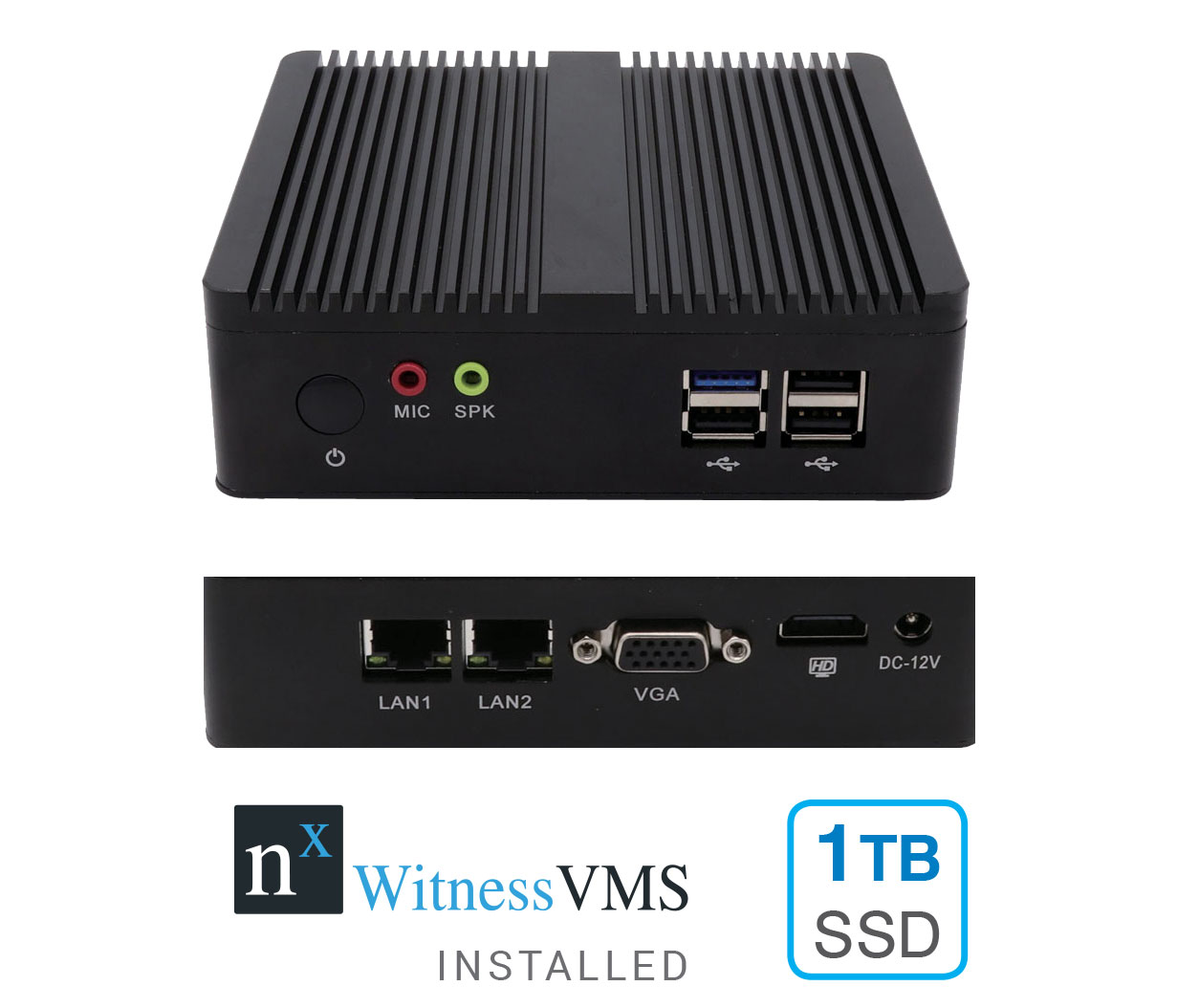

VMS5 Server with NX and 1TB SSD Ness
Ness VMS5 server includes NX Witness software and a 1TB SSD. Ideal for CCTV and VMS installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness VMS5 CCTV Server, Ness VMS5 VMS Server, NX Witness Recording Server
Technical Specifications
- Processor: Intel Celeron J1900 quad-core, 2.0GHz up to 2.41GHz
- Memory: 8GB RAM
- Operating System: Linux
- VMS Software: NX Witness Server pre-installed
- System Storage: 64GB mSATA SSD
- Recording Storage: 1TB 2.5-inch SSD
- Camera Capacity: Up to 4 x 8MP cameras
- Network: 2 x Gigabit Ethernet ports
- Video Output: HDMI and VGA
- USB Connectivity: 3 x USB 2.0 and 1 x USB 3.0
- Power Input: 12V DC via supplied power adaptor
- Cooling: Fanless passive cooling
- Licensing: NX recording licences sold separately
- Client Software: NX Witness Client must be installed on a separate PC or laptop
- Dimensions (H x L x W): 43mm x 136mm x 126mm
- Weight: 0.75 kg
Key Features
- Fanless design for quiet, continuous operation
- NX Witness Server software pre-installed
- Dedicated 1TB SSD for video storage
- Separate 64GB mSATA SSD for the operating system and VMS software
- Supports recording from up to four 8MP cameras
- Dual Gigabit Ethernet connectivity
- HDMI and VGA display outputs for local setup
- Automatic power-on and Wake-on-LAN functions
- Compact aluminium chassis with optional VESA mounting
- Designed to serve video streams to multiple remote clients
Professional Installation Requirements
- Configuration, network integration and CCTV system commissioning should be performed by a qualified CCTV or IT technician. NX recording licences are required separately, and the NX Client software must be installed on a separate networked PC or laptop.
Applications
- Small CCTV and IP video surveillance installations
- Video management and recording for up to four 8MP cameras
- Commercial security monitoring systems
- Remote video serving to multiple NX Witness client workstations
- Retail, office, residential and light industrial surveillance systems
Standards & Compliance
- AS/NZS 62368.1: Applicable safety standard for audio, video and information and communication technology equipment; product-specific conformity is not stated by the manufacturer.
Environmental Benefits
- 10W processor TDP helps reduce operating energy consumption
- Fanless cooling reduces moving parts, maintenance requirements and potential replacement waste
- SSD storage uses no moving parts and can support extended service life in continuous-use applications
- Compact low-power hardware can reduce energy and material requirements compared with larger conventional servers
Warranty Information
Ness-manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation’s warranty terms.
Available Now
VMS servers are built to order; availability should be confirmed with a Ness branch or authorised Australian distributor.
