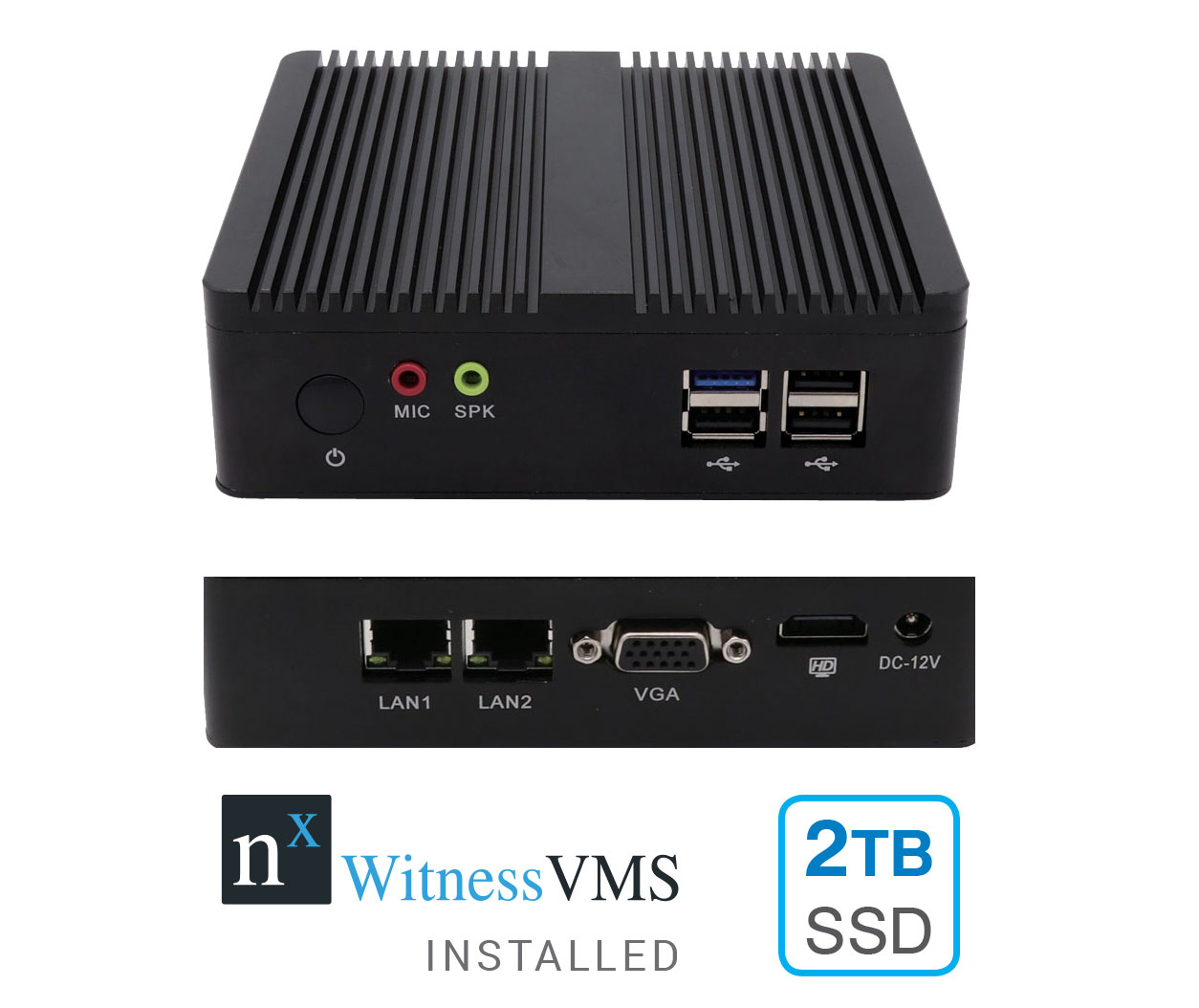

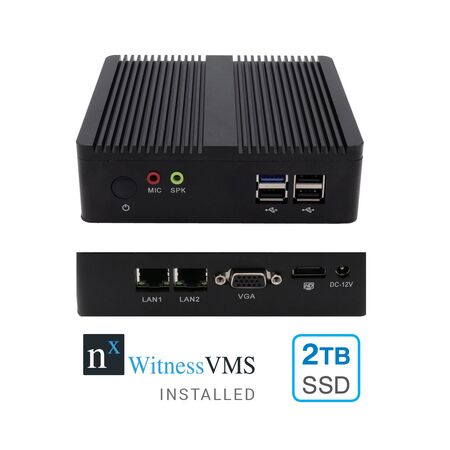

VMS5 Server with NX and 2TB SSD Ness
Ness VMS5 server includes NX Witness software and a 2TB SSD. Ideal for CCTV and VMS installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness VMS5 CCTV Server, Ness VMS5 Video Server, NX Witness VMS Server
Technical Specifications
- Processor: Intel Celeron J1900 quad-core, 2.0GHz up to 2.41GHz
- Memory: 8GB RAM
- Operating System: Linux
- VMS Software: NX Witness Server pre-installed
- System Storage: 64GB mSATA SSD for operating system and VMS
- Recording Storage: 2TB 2.5-inch SSD
- Camera Support: Up to 4 x 8MP cameras
- Network: Dual Gigabit Ethernet
- Video Outputs: HDMI and VGA
- USB Connectivity: 3 x USB 2.0 and 1 x USB 3.0
- Cooling: Fanless aluminium chassis
- Power Input: 12V DC via supplied power adaptor
- Licensing: NX recording licences sold separately
- Operating Temperature: -10°C to +60°C
- Humidity: 10% to 90% relative humidity, non-condensing
- Dimensions (H x L x W): 43mm x 136mm x 126mm
- Weight: 0.75 kg
Key Features
- NX Witness VMS server software pre-installed
- Dedicated 2TB SSD for video recording storage
- Separate 64GB mSATA SSD for the operating system and VMS
- Fanless design for quiet operation and reduced maintenance
- Supports up to four 8MP CCTV cameras
- Designed to record and serve video streams to multiple remote clients
- Dual Gigabit Ethernet ports for network connectivity
- Automatic power-on after power restoration
- Compact VESA-mountable mini PC chassis
- NX Client software runs on a separate PC or laptop
Professional Installation Requirements
- Setup should be completed by a suitably qualified CCTV or network technician. The server requires network configuration, camera commissioning and separate NX recording licences. A monitor and USB keyboard may be required for local setup; mains electrical work, if required, must be performed by a licensed electrician.
Applications
- Small commercial CCTV systems
- Retail and office video surveillance
- Residential and strata security installations
- Remote video monitoring systems
- IP camera recording and management
- Video surveillance systems using NX Witness software
Standards & Compliance
- AS/NZS 62676.1.1:2020 is relevant to CCTV and video surveillance system requirements; product-specific certification is not stated by the manufacturer.
- Electrical equipment supplied in Australia should meet applicable EESS requirements, including relevant safety standards and RCM obligations where applicable.
Environmental Benefits
- Fanless operation reduces cooling energy use and removes a mechanical fan wear component
- Low-power Intel Celeron platform with a 10W TDP supports reduced operating energy consumption
- SSD storage has no moving parts, helping reduce maintenance and replacement waste
- Ness publishes a RoHS certificate of compliance for its products
- Compact hardware design reduces material use compared with larger server platforms
Warranty Information
3 years from date of purchase under Ness Corporation's general warranty for Ness-manufactured or supplied products, subject to the published warranty terms.
Available Now
Built to order; availability should be confirmed with an authorised Ness Australian distributor or Ness branch.
