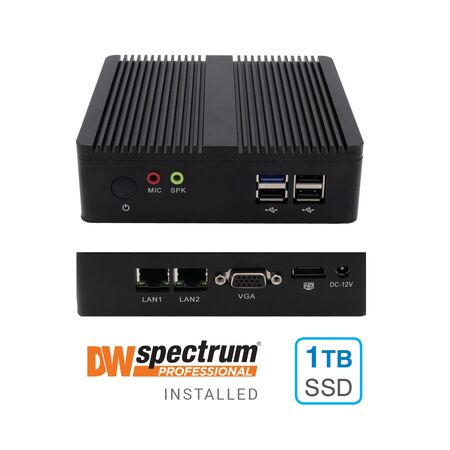

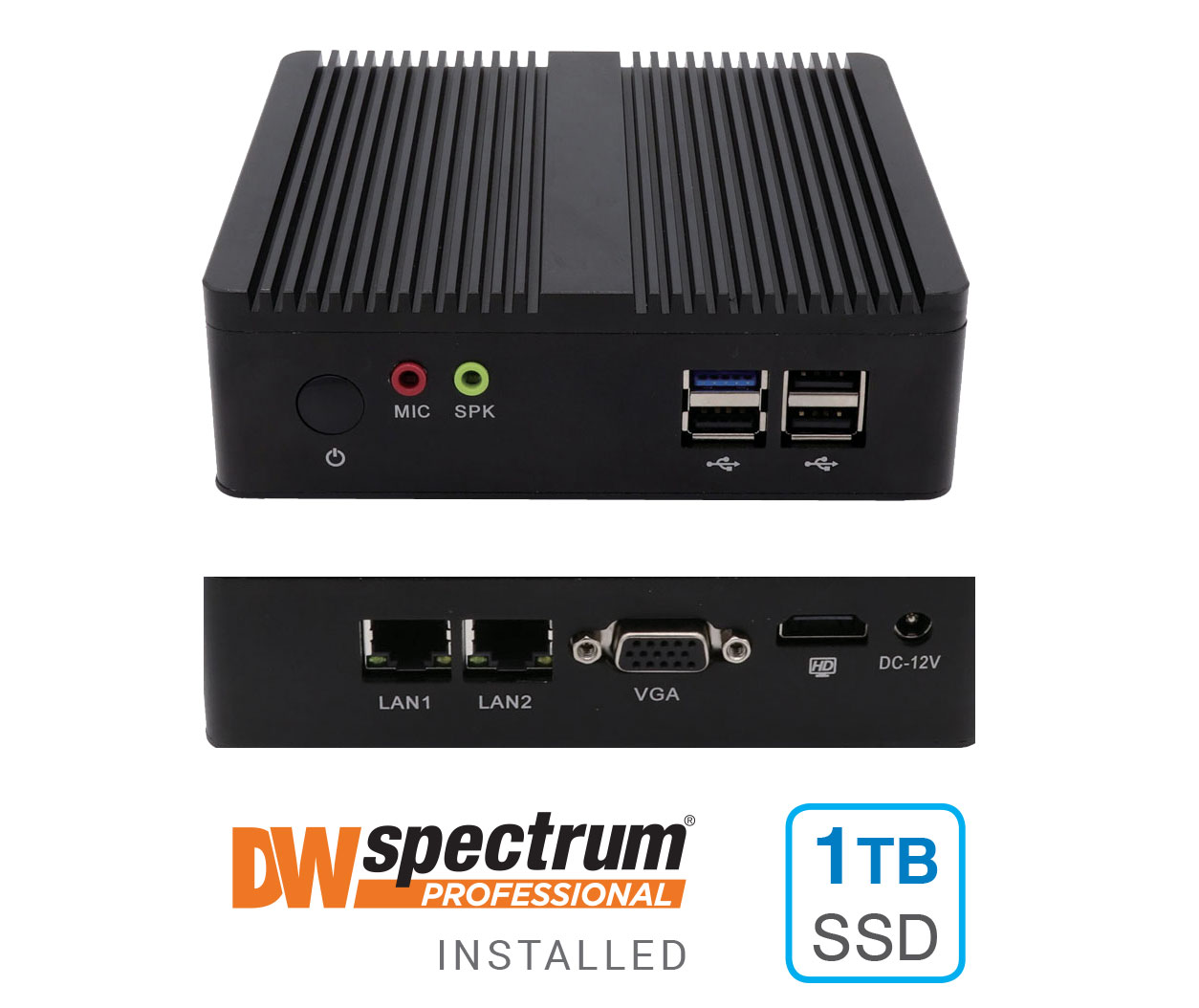

VMS5 Server with Spectrum and 1TB SSD Ness
Ness VMS5 server includes Spectrum software and a 1TB SSD. Ideal for CCTV and VMS installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness VMS5 Server, CCTV Video Management Server, DW Spectrum VMS Server, Fanless CCTV Server
Technical Specifications
- Processor: Intel Celeron J1900 quad-core, up to 2.41GHz
- Memory: 8GB RAM
- Operating System: Linux
- VMS Software: DW Spectrum Server pre-installed
- Recording Storage: 1TB 2.5-inch SSD
- Operating System Storage: Separate 64GB mSATA SSD
- Camera Capacity: Up to 4 x 8MP cameras
- Network: 2 x Gigabit Ethernet ports
- Video Outputs: 1 x HDMI and 1 x VGA
- USB: 3 x USB 2.0 and 1 x USB 3.0
- Power Input: 12V DC via external power adaptor
- Cooling: Fanless aluminium chassis
- Licensing: Spectrum recording licences sold separately
- Network Configuration: DHCP with automatic server discovery
- Power Recovery: Auto-boot on power restoration
- Dimensions (H x L x W): 43mm x 136mm x 126mm
- Weight: 0.75 kg
Key Features
- Fanless mini PC design for quiet, low-maintenance operation
- DW Spectrum Server software pre-installed for CCTV video management
- Includes dedicated 1TB SSD for video recording storage
- Separate system SSD helps isolate the operating system and VMS software from recording data
- Supports up to four 8MP IP cameras
- Designed to serve video streams to multiple remote client computers
- Automatic IP address assignment and server discovery over the network
- Compact aluminium enclosure suitable for space-constrained installations
- Spectrum client software is run on a separate PC or laptop
- Spectrum recording licence is required separately
Professional Installation Requirements
- Installation and configuration should be performed by a suitably qualified CCTV or security technician. A separate monitor and USB keyboard may be required for local setup; Spectrum client software should be installed on a separate networked PC or laptop. Mains connection should comply with AS/NZS 3000 where applicable.
Applications
- Residential CCTV video management
- Commercial and small-business surveillance systems
- IP camera recording and remote video serving
- Retail, office and light-industrial security installations
- CCTV systems requiring a compact, fanless VMS server
Standards & Compliance
- AS/NZS 62676.1.1:2020 and the AS/NZS 62676 series are applicable to the design and operation of CCTV/video surveillance systems; product-specific compliance is not stated by Ness.
- AS/NZS 3000:2018 may apply to the electrical installation and connection of the supplied power adaptor.
Environmental Benefits
- Fanless design reduces mechanical wear and avoids cooling-fan replacement waste
- Low 10W processor TDP supports reduced operating energy consumption
- SSD storage has no moving parts, supporting quieter operation and potentially longer service life
- Compact hardware reduces material use and transport volume compared with larger server systems
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions. ([ness.com.au](https://ness.com.au/product-warranty))
Available Now
VMS servers are built to order; check availability with an authorised Ness Australian branch or distributor. ([ness.com.au](https://ness.com.au/104-vms5-1tb-sp?utm_source=openai))
