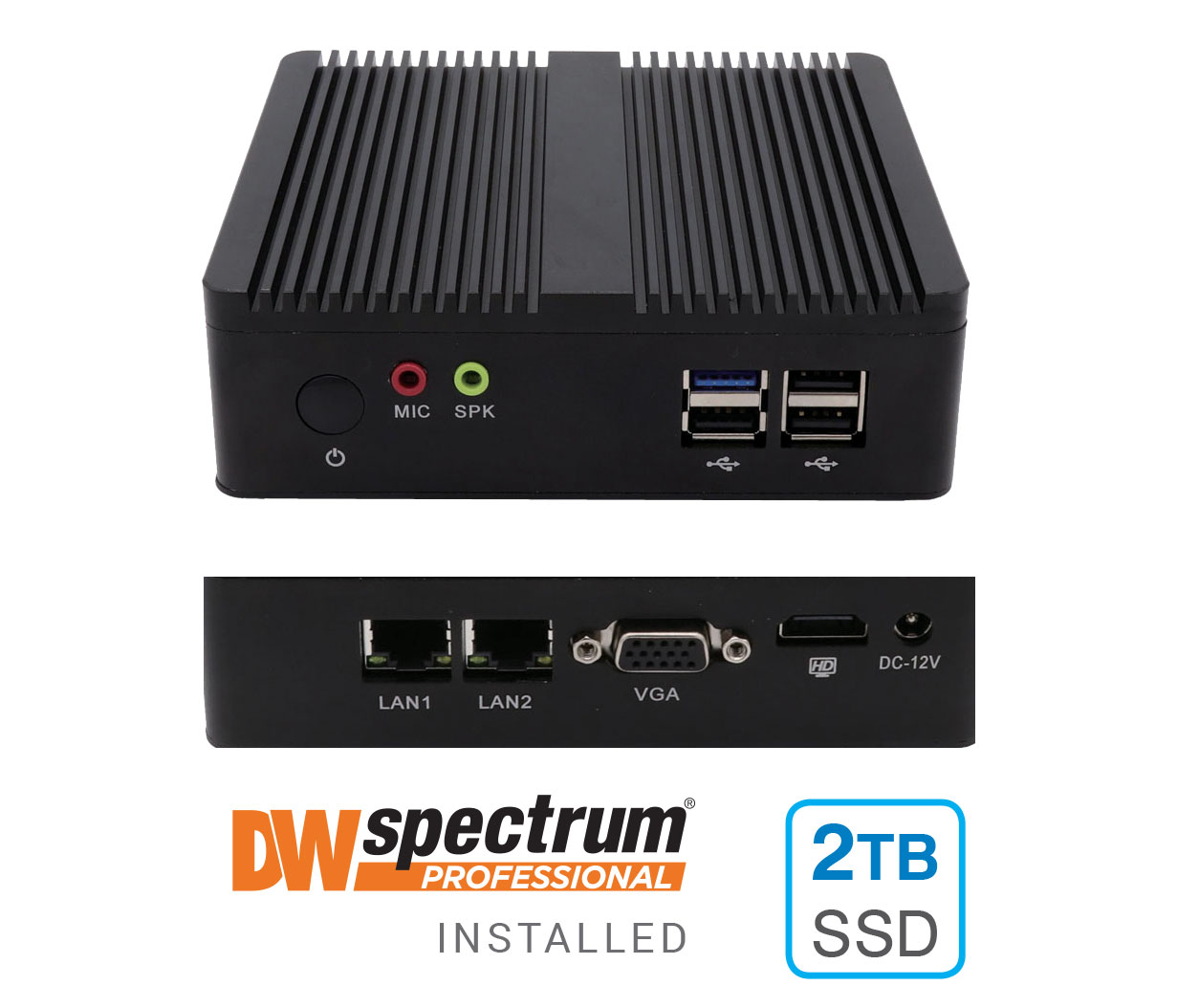

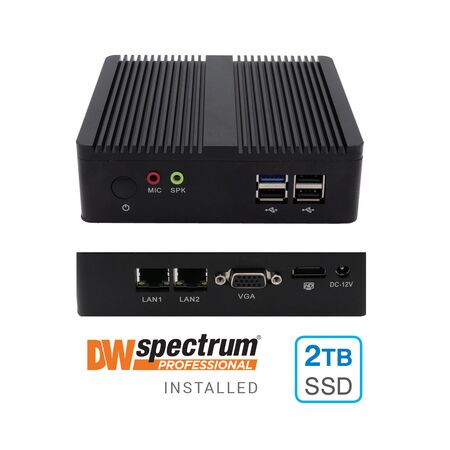

VMS5 Server with Spectrum and 2TB SSD Ness
Ness VMS5 server includes Spectrum software and a 2TB SSD. Ideal for CCTV and VMS installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness VMS5 CCTV Server, Ness VMS5 Video Management Server, DW Spectrum VMS Server
Technical Specifications
- Model: 104-VMS5-2TB-SP
- Processor: Intel Celeron J1900 quad-core, up to 2.41GHz
- Memory: 8GB RAM
- Operating System: Linux
- VMS Software: DW Spectrum Server pre-installed
- Storage: 64GB mSATA SSD for operating system plus 2TB 2.5-inch SSD for video storage
- Camera Capacity: Up to 4 x 8MP cameras
- Network: 2 x Gigabit Ethernet ports
- Video Output: HDMI and VGA
- USB Ports: 3 x USB 2.0 and 1 x USB 3.0
- Power Input: 12V DC via external power adapter
- Cooling: Fanless aluminium chassis
- Recording Licences: Spectrum recording licences sold separately
- Configuration: DHCP network setup with automatic client discovery
- Dimensions (H x L x W): 43mm x 136mm x 126mm
- Weight: 0.75 kg
Key Features
- Fanless mini PC design for quiet, low-maintenance operation
- DW Spectrum VMS software pre-installed for CCTV video management
- Separate system and recording drives
- Supports up to four 8MP cameras
- Designed to record and serve video streams to multiple remote clients
- Auto-boot after power restoration
- Can be configured remotely using Spectrum Client on a separate PC or laptop
- Compact aluminium chassis with optional VESA mounting
Professional Installation Requirements
- Setup and commissioning should be performed by a suitably qualified CCTV or security systems technician. Spectrum Client software must be installed on a separate PC or laptop, and recording licences must be activated separately.
Applications
- Residential CCTV systems
- Commercial security surveillance
- Small retail and office video surveillance
- Remote video recording and management installations
- Multi-client IP camera monitoring systems
Standards & Compliance
- Applicable CCTV system standard: AS/NZS 62676.1.1:2020, Video surveillance systems for use in security applications — System requirements general
- Applicable IP video interoperability standard: AS/NZS 62676.2.1:2020, Video transmission protocols
- Electrical installation of the supplied power arrangement should follow AS/NZS 3000:2018 where applicable
Environmental Benefits
- Fanless 10W TDP platform can reduce operating energy consumption compared with higher-power conventional servers
- SSD storage has no moving parts, supporting longer service life and reducing replacement-related waste
- Aluminium chassis is a durable material that can be recycled at end of service life
- Separate system and recording storage can simplify maintenance and extend the usable life of the server
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase unless otherwise specified. Warranty claims are subject to Ness Corporation warranty terms and Australian Consumer Law.
Available Now
Built to order and available through Ness Corporation and authorised Australian distributors; check stock with the relevant Ness branch.
