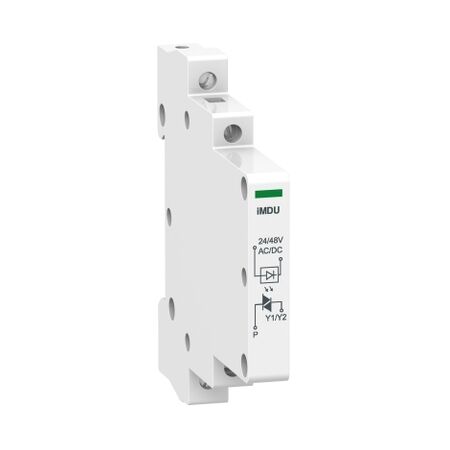

Voltage Adaptation Module 24-48V AC/DC | IP20 Protection | DIN Rail by Clipsal
Voltage adaptation module with 24-48V AC/DC compatibility and IP20 protection—ideal for small commercial applications. Built for seamless integration with iC60 devices, featuring fixed DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Adaption module, 24-48V AC or DC voltage
Brand: Clipsal
SKU: A9C18195
Alternatively Known As: Voltage Adaptor, iMDU Module
Technical Specifications
- Control circuit voltage: 24-48V AC/DC
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6kV
- Relative humidity: 95% at 55°C
- Ambient air temperature for operation: -20...60°C
- Ambient air temperature for storage: -40...80°C
- Tropicalisation: 2
- Dimensions (H x L x W): 78mm x 74mm x 9mm
- Weight: 0.053 kg
Key Features
- Compatible with iC60 and Reflex iC60 devices.
- Fixed mounting on 35 mm symmetrical DIN rail.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial applications requiring voltage adaptation.
Standards & Compliance
- Complies with IEC 60529 for IP ratings.
Environmental Benefits
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Voltage Adaptation Module is available now for immediate purchase. Ideal for small commercial applications.
