Voltage Monitoring Relay 1 Phase | 2-500V AC/DC | Adjustable Delay | DIN Rail by NHP
Voltage monitoring relay with 2-500V AC/DC range and adjustable delay—ideal for industrial and commercial voltage stability. Built for precision, with DIN rail mounting for easy installation.
Sign in
Please login to continue to your account.

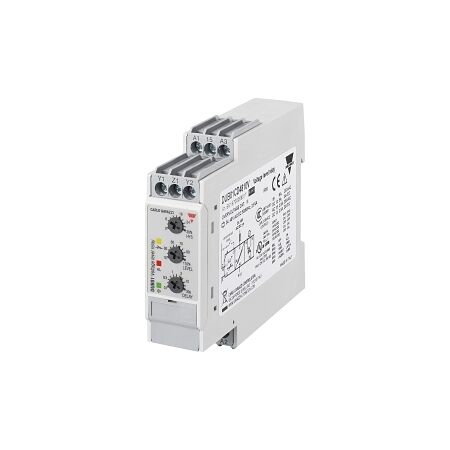

Product Name/Title: Carlo Gavazzi Monitoring Relay 1 Phase Over/Under Voltage 2-500V AC DC and 24-48V AC DC
Brand: NHP
SKU: DUB01CD48500V
Alternatively Known As: Voltage Monitoring Relay, AC DC Voltage Relay, Over Under Voltage Relay
- Type of voltage measuring range: AC/DC
- Voltage measuring range: 2-500V
- Rated frequency: 45-65 Hz
- Rated operation current: 8 A
- Over voltage category: III
- Degree of protection: IP20
- Material contact: Silver tin-oxide
- Suitable for DIN rail mounting: Yes
- Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
- Weight: 0.15 kg
- Measures voltage ranges from 2-500V AC/DC
- Single phase over and under voltage monitoring
- Adjustable delay on energization time
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Monitoring voltage levels in machinery and equipment
- Commercial: Ensuring voltage stability in electrical systems
- Complies with relevant Australian standards for electrical safety.
- Energy-efficient design helps in reducing electrical waste.
1 year warranty against manufacturing defects.
The Carlo Gavazzi Monitoring Relay 1 Phase Over/Under Voltage is available now for immediate purchase. Ideal for industrial and commercial applications.
