Voltage Monitoring Relay 1 Phase 208-408V AC | Self-Powered | DIN Rail Mount by NHP
Voltage monitoring relay with 208-408V AC range and self-powered operation—ideal for industrial and commercial voltage stability. Built for safety and efficiency, with DIN rail mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

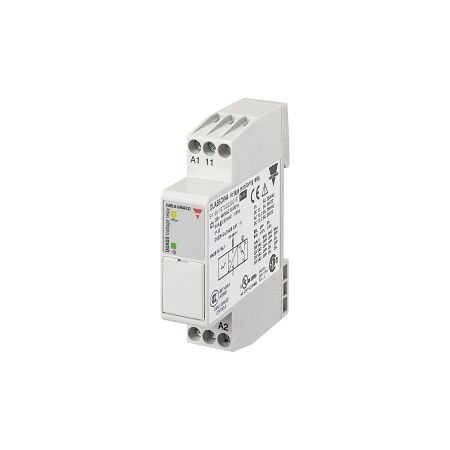

Product Name/Title: Carlo Gavazzi Monitoring Relay 1 Phase 208-408V AC
Brand: NHP
SKU: DUA55CM44
Alternatively Known As: Voltage Monitoring Relay, AC Monitoring Relay
Technical Specifications
- Type of Voltage Measuring Range: AC
- Voltage Measuring Range: 177-550 V
- Rated Frequency: 45-65 Hz
- Rated Operation Current: 5 A
- Rated Control Supply Voltage: 208-480 V
- Over Voltage Category: III
- Type of Electric Connection: Screw connection
- Material Contact: Silver tin-oxide
- Degree of Protection: IP20
- Suitable for DIN rail mounting: Yes
- Storage Temperature: -30-80 °C
- Dimensions (H x L x W): 81mm x 67.2mm x 17.5mm
- Weight: 0.08 kg
Key Features
- Single phase under voltage and over voltage monitoring.
- Self-powered operation with a wide voltage measuring range.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring electrical systems and equipment
- Commercial: Ensuring voltage stability in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay 1 Phase 208-408V AC is available now for immediate purchase. Ideal for industrial and commercial applications requiring voltage monitoring.
Non-Returnable & Non-Cancellable
