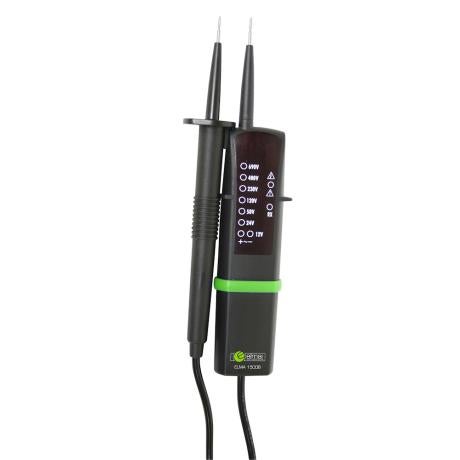

Voltage Tester 690V AC/DC | CAT IV 300V & CAT III 690V | IP54 Rated | by Wattmaster

BRAND: Wattmaster
SKU: WATEL-1500B
$86.80 List price: $105.10
+
The Voltage Tester 690V AC/DC is designed for reliable electrical testing, featuring a voltage test range of 12-690V and dual LED and audible indications for voltage presence. Ideal for electricians and technicians, this tester is built for safety with CAT IV 300V and CAT III 690V ratings, ensuring accurate voltage verification in residential, commercial, and industrial environments.

Product Name/Title: Voltage Tester 690V AC/DC | CAT IV 300V & CAT III 690V | IP54 Rated | by Wattmaster

Brand: Wattmaster

SKU: WATEL-1500B

Alternatively Known As: Voltage Detector, AC/DC Voltage Tester, Electrical Voltage Tester, Phase Voltage Tester

Technical Specifications
  • Voltage Test Range: 12-690 V AC/DC
  • Safety Category: CAT IV 300V, CAT III 690V
  • Protection Rating: IP54
  • Indications: LED and audible signals
  • Probe Spacing: 19mm
  • Standards Compliance: IEC 61010-1, EN 61243-3:2010
  • Power Source: Standard batteries (voltage indication active without batteries)
  • Dimensions (H x L x W): 150mm x 30mm x 50mm
  • Weight: 0.15 kg
Key Features
  • Voltage test range 12-690 V AC/DC with 2-pole LED indication
  • Audible and visual indication for voltage presence
  • Phase indication feature
  • Clever test probes with 19mm spacing for easy one-hand operation
  • Automatic switching between functions with no buttons to prevent wrong operation
  • Voltage indication active even without batteries
  • IP54 rated for dust and splash protection
Professional Installation Requirements
  • No professional installation required; however, use by qualified personnel is recommended for safety.
Applications
  • Electrical testing and troubleshooting in residential, commercial, and industrial environments
  • Voltage verification in electrical installations and maintenance
  • Phase indication for electrical circuits
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Battery-efficient design reduces waste and environmental impact
  • Durable construction extends product life, reducing replacement frequency
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Wattmaster Voltage Tester 690V AC/DC CAT IV 300V CAT III 690V is available now for immediate purchase. Ideal for electricians and technicians requiring reliable voltage testing.
