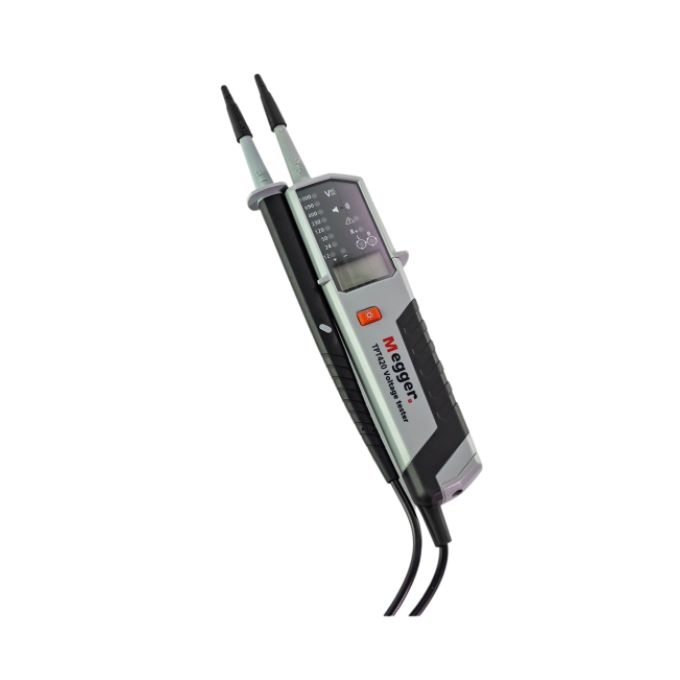

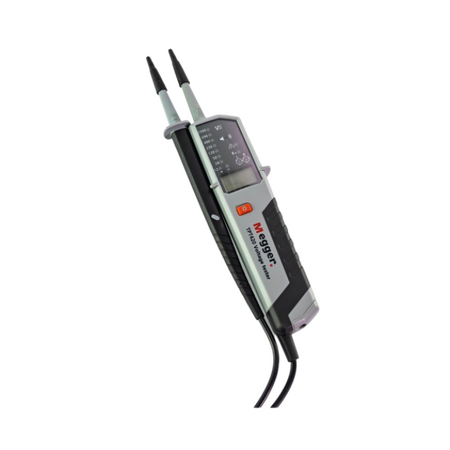

Voltage Tester | CAT IV 1000 V Safety Rating | IP64 Water & Dust Resistant | Dual Display | by Rapid Tech

BRAND: Rapid Tech
SKU: TPT420
$290.80 List price: $364.50
+ −
30 Days Return Delivery Options
The Voltage Tester with CAT IV 1000 V safety rating and IP64 water and dust resistance is perfect for electricians and technicians. It features a dual display with 13 LEDs and a 4-digit LCD for clear voltage and continuity readings, making it ideal for electrical installations, solar system testing, and automotive diagnostics. Built for durability and accuracy, this tester ensures reliable performance in tough conditions.

Product Name/Title: Voltage Tester | CAT IV 1000 V Safety Rating | IP64 Water & Dust Resistant | Dual Display | by Rapid Tech

Brand: Rapid Tech

SKU: TPT420

Alternatively Known As: Megger TPT420 Voltage Tester, Electrical Voltage Tester, Digital Voltage Tester, Solar Voltage Tester, Continuity Tester

Technical Specifications
  • Display: 13 LEDs and 4 digit LCD with 1 V resolution
  • Voltage range: LED indication at ±12, 24, 50, 120, 230, 400, 690, 1000 V; LCD range 12 – 1000 V AC / 1500 V DC
  • Voltage warning: <50 V AC, <120 V DC indication LED
  • Backlight: Automatic
  • Polarity indication: Automatic
  • Frequency range: 40 – 400 Hz
  • Peak current: <3.5 mA at 1000 V
  • Single pole test: 100 – 1000 V AC (50/60 Hz)
  • Phase rotation: 120 – 400 V phase to phase AC 50/60 Hz
  • Continuity indication: >500 kΩ + 50%
  • Input impedance: 320 kΩ at 50 V (ELV)
  • Overvoltage category: CAT IV 1000 V
  • Pollution degree: 2
  • Protection rating: IP64
  • Standards compliance: EN 61010, EN 61243-3:2014, DIN VDE 0682-401
  • Operating temperature: -5 to 40°C; Storage: -20 to 70°C
  • Humidity: Max 85% RH
  • Altitude: Up to 2000 m
  • Power supply: 2 x 1.5 V AAA LR03 batteries
  • Cable length: Approximately 1.2 m
  • Dimensions (H x L x W): 255mm x 30mm x 67mm
  • Weight: 0.21 kg
Key Features
  • CAT IV 1000 V safety rating for high voltage environments
  • IP64 rated water and dust resistance for durability in tough conditions
  • Dual display with 13 LEDs and 4 digit LCD for clear voltage and continuity readings
  • Voltage measurement range from 12 to 1000 V AC and up to 1500 V DC
  • Continuity testing up to 500 kΩ with acoustic sounder
  • Phase rotation indication without the need to cross test probes
  • Bright integrated LED torch for working in low light conditions
  • Works below RCD, RCBO, and Safety Breaker tripping thresholds to prevent disconnection
  • Includes GS38 probe tip shrouds and protective carry pouch
Professional Installation Requirements
  • Professional use by qualified electricians or technicians is recommended to ensure safety and accurate measurements.
Applications
  • Electrical installations and maintenance
  • Solar/PV system testing and maintenance
  • Automotive electrical diagnostics
  • Fire alarm system testing
  • Residential, commercial, and industrial electrical work
Standards & Compliance
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable IP64 housing reduces need for frequent replacements, minimizing electronic waste
  • Battery-efficient design ensures longer operation reducing battery waste
Warranty Information

Standard manufacturer warranty applies; please refer to Rapid Tech for specific warranty details.

Available Now

The Rapid Tech Megger TPT420 Voltage Tester is available for immediate purchase, ideal for electricians, solar industry professionals, and electrical engineers requiring reliable voltage and continuity testing.
