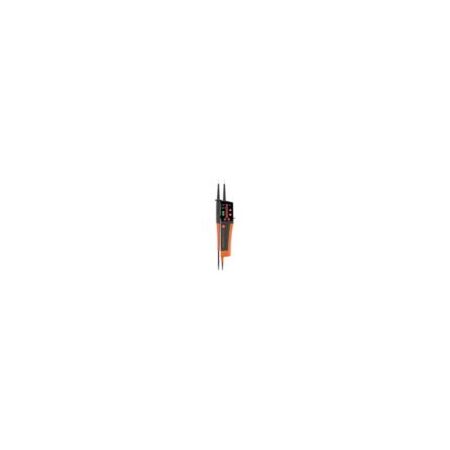

Voltage Tester with Phase Rotation & Continuity | LED Display | 690V AC/DC | CAT IV 600V by Eaton
The KT170-AU voltage tester features an LED display and measures AC and DC voltage up to 690V, making it ideal for electrical testing and troubleshooting. Built for professional electricians, it offers phase rotation verification and continuity testing in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Voltage Tester with Phase Rotation & Continuity | LED Display | 690V AC/DC | CAT IV 600V by Eaton
Brand: Eaton
SKU: 0KT170029A
Alternatively Known As: Voltage Tester, Phase Rotation Tester, Continuity Tester, Electrical Tester
Technical Specifications
- Product Name: Kyoritsu KT170-AU Voltage tester
- Display type: LED
- Input frequency range: 16 Hz to 400 Hz
- Operating temperature range: -15 °C to 55 °C
- Relative humidity: 0-85% non-condensing
- AC Voltage Measurement Max: 690 V
- DC Voltage Measurement Max: 690 V
- Measurement Capabilities: Phase Rotation, Continuity, Buzzer
- Safety Category Rating: CAT IV 600V
- Certifications: IEC 61010-1, IEC 60529, IEC 61243-3, IEC 61557-7
- Dimensions (H x L x W): 246mm x 64mm x 26mm
- Weight: 0.195 kg
Key Features
- LED display for clear readings
- Measures AC and DC voltage up to 690 V
- Phase rotation and continuity buzzer functions
- Safety Category Rating CAT IV 600V
- Operates in temperatures from -15 °C to 55 °C
- Input frequency range from 16 Hz to 400 Hz
Professional Installation Requirements
- Professional use recommended; installation or use by qualified electricians ensures safety and compliance.
Applications
- Electrical testing and troubleshooting
- Phase rotation verification
- Continuity testing in electrical circuits
- Industrial and residential electrical maintenance
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces waste by extending product life
- Battery included for efficient power use
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy.
Available Now
The KT170-AU Voltage Tester with Phase and Continuity by Eaton is available now for immediate purchase. Ideal for electrical testing and maintenance in industrial and residential settings.
