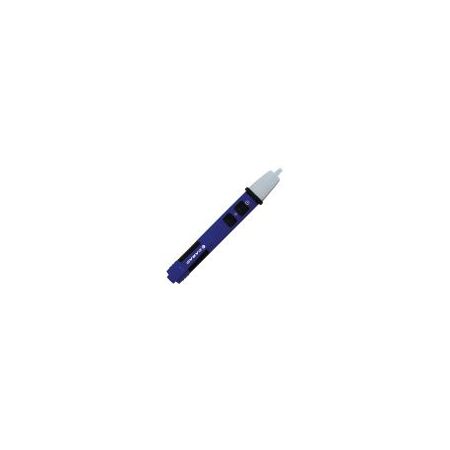

Voltfinger Non Contact Tester with Torch CAT IV 1000V Cabac

BRAND: CABAC
SKU: C3121
$67.90 List price: $90.50
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Voltfinger non-contact voltage tester features LED and audible indication, built-in torch and CAT IV 1000V rating. Ideal for locating live conductors.

Alternatively Known As: CABAC Voltfinger, non-contact voltage detector, NCV tester, voltage stick

Technical Specifications
  • Model: C3121
  • Detection Type: Non-contact AC voltage detection
  • Indication: Visual LED and audible buzzer
  • Controls: On/off switch and sensitivity buttons
  • Torch: Front-mounted LED torch
  • Frequency Range: 40–400 Hz
  • Power Consumption: 80 mA
  • Safety Rating: CAT IV 1000 V
  • Safety Compliance: EN 61010-1
  • Contents: Tester, batteries and instruction manual
  • Dimensions (H x L x W): 23mm x 155mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Non-contact detection for tracing and locating live AC conductors
  • Combined visual LED and audible voltage indication
  • Built-in LED torch for use in dark panels and work areas
  • Adjustable sensitivity controls
  • Compact pen-style design
  • CAT IV 1000 V overvoltage category
  • Must be proven on a known live source before and after testing
Professional Installation Requirements
  • No installation is required. Use should be limited to a competent person who has read the instructions. The tester must not be used as the sole means of proving that a circuit is de-energised; electrical work and testing must be performed in accordance with applicable workplace and electrical safety requirements.
Applications
  • Locating live AC conductors
  • Preliminary electrical safety checks
  • Tracing wiring in electrical panels and enclosures
  • Electrical maintenance in residential, commercial and industrial environments
  • Illuminating dark panels and work areas
Standards & Compliance
  • AS/NZS 61010.1 is the applicable Australian/New Zealand safety standard family for electrical measurement and test equipment; manufacturer documentation states compliance with EN 61010-1
  • CAT IV 1000 V overvoltage category
Environmental Benefits
  • LED indication and torch provide low-power illumination compared with conventional lamps
  • Battery-powered operation avoids mains power consumption during portable testing
  • Compact reusable construction can reduce reliance on disposable single-use testing devices
Warranty Information

12-month warranty from date of purchase against manufacturing defects, subject to CABAC warranty terms. Misuse, neglect, incorrect installation, calibration, accessories and batteries are excluded.

Available Now

Available through CABAC and authorised Australian electrical distributors.
