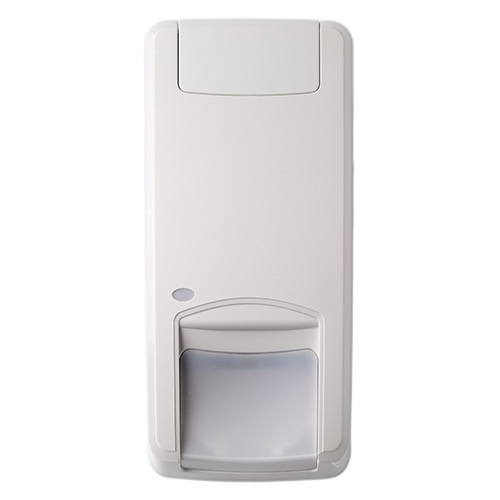

Volumetric Dual Tech Motion Sensor 12m Pet Immunity 18kg Tecom

BRAND: Ness
SKU: 122-216
$127.30 List price: $169.70
+ −
30 Days Return Electricians Unlock Trade Access
Tecom volumetric dual tech motion sensor features 12m range, 18kg pet immunity and self-diagnostics. Ideal for alarm systems.

Alternatively Known As: Tecom Dual Technology Motion Detector, Aritech DD1012PI, PIR Microwave Motion Sensor

Technical Specifications
  • Detection Technology: Dual PIR and microwave
  • Maximum Detection Range: 12 m
  • Selectable Detection Range: 4 m, 6 m, 9 m or 12 m
  • Pet Immunity: Up to 18 kg, approximately 35 cm height
  • Microwave Frequency: 5.8 GHz
  • Coverage: 78° with 9 high-density mirror curtains
  • Operating Voltage: 9–15 V DC, 12 V nominal
  • Current Consumption: 8 mA nominal
  • Alarm and Tamper Relays: Normally closed, 80 mA at 30 V DC, Form A
  • Mounting Height: 2.3–2.6 m for pet-immune operation
  • Operating Temperature: −10°C to 55°C
  • Humidity: Up to 95% relative humidity, non-condensing
  • Environmental Protection: IP30, IK04
  • Security Classification: EN 50131 Grade 2
  • Dimensions (H x L x W): 126mm x 63mm x 50mm
  • Weight: 0.12 kg
Key Features
  • Combines PIR and range-gated microwave technologies for volumetric motion detection
  • Selectable 4 m, 6 m, 9 m and 12 m detection ranges
  • Pet immunity for animals up to 18 kg when correctly installed
  • Automatic continuous self-diagnostics across the detection technologies
  • Nine high-density mirror curtains provide broad indoor coverage
  • Undercrawl protection helps detect movement close to the sensor
  • Day/night input can switch the microwave detection off when the alarm system is disarmed
  • Alarm memory and remote walk-test functions
  • Suitable for wall-mounted indoor alarm applications
Professional Installation Requirements
  • Installation, wiring, positioning and commissioning should be performed by a suitably qualified security-alarm installer. Install in accordance with the alarm-system manufacturer’s instructions and applicable AS 2201 requirements; correct mounting height and placement are required for pet-immunity performance.
Applications
  • Residential intruder alarm systems
  • Commercial security alarm systems
  • Indoor perimeter and volumetric detection
  • Pet-friendly homes and premises
  • Integration with compatible wired alarm control panels
Standards & Compliance
  • AS 2201.3-1991 – Intruder alarm systems, detection devices for internal use
  • AS/NZS 2201.1:2007 – Intruder alarm systems, client premises design, installation, commissioning and maintenance
Environmental Benefits
  • Low nominal current consumption of approximately 8 mA helps reduce the power demand of the alarm system
  • Dual-technology detection and self-diagnostics can reduce nuisance alarms, unnecessary call-outs and premature component replacement
  • Durable indoor construction supports extended service life and reduced electronic waste
Warranty Information

Tecom Challenger hardware is listed by Australian security distributors with a 5-year warranty from the date of manufacture; confirm the applicable warranty terms with the supplying distributor.

Available Now

Available through Tecom and authorised Australian security-system distributors.
