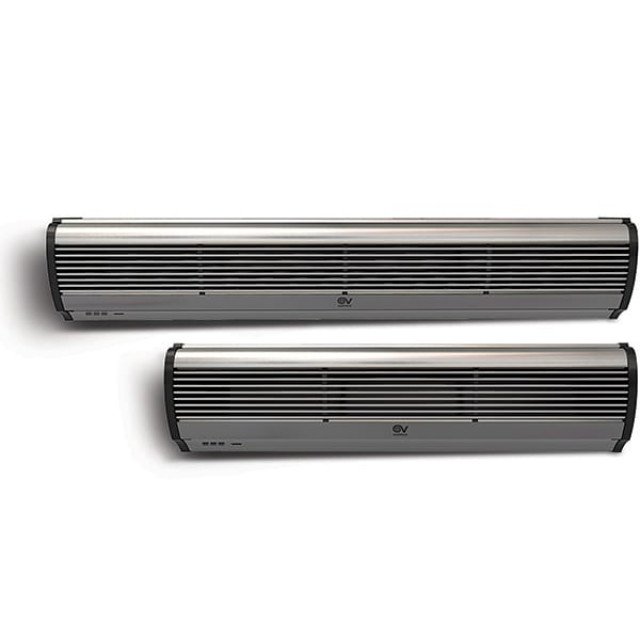

Vortice Air Curtain | 230V Voltage | 1100 m3/h Air Flow | 55 dBA Noise Level | by Allvent
Vortice air curtain with 230V voltage and 1100 m3/h airflow—ideal for commercial entrances and office buildings. Built for energy efficiency, it features a modern design, adjustable outlet vanes, and quiet operation at 55 dBA.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Vortice Air Curtain | 230V Voltage | 1100 m3/h Air Flow | 55 dBA Noise Level | by Allvent
Brand: Allvent
SKU: ALV65195
Alternatively Known As: Air Door, Air Barrier, Commercial Air Curtain, Entrance Air Curtain
Technical Specifications
- Voltage: 230V
- Frequency: 50Hz
- Power Consumption: 110 Watts
- Air Flow: 1100 m3/h
- Noise Level: 55 dBA at 2 meters
- Weight: 10 kg
- Dimensions (H x L x W): 220mm x 190mm x 900mm
- Weight: 10 kg
Key Features
- Elegant and modern Vortice design suitable for high-tech settings
- Brushed aluminium frontage with integrated intake grille
- Rear panel in black painted sheet metal
- IR remote control for convenient operation
- Two operating speeds for adjustable airflow
- Vortice tangential fans for quiet operation
- Base opening allows air to escape
- Adjustable outlet vanes to direct outgoing air stream
Professional Installation Requirements
- Professional installation by a qualified HVAC technician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Commercial ventilation for retail entrances
- Office building air flow management
- Industrial and high-tech settings requiring air curtains
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps reduce energy costs by maintaining indoor temperature
- Minimizes loss of heated or cooled air
- Reduces dust and insect entry, improving indoor air quality
Warranty Information
Standard manufacturer warranty applies; please refer to Allvent for specific terms.
Available Now
The Allvent Vortice Air Curtain AD900 is available now for immediate purchase. Ideal for commercial and industrial ventilation applications.
