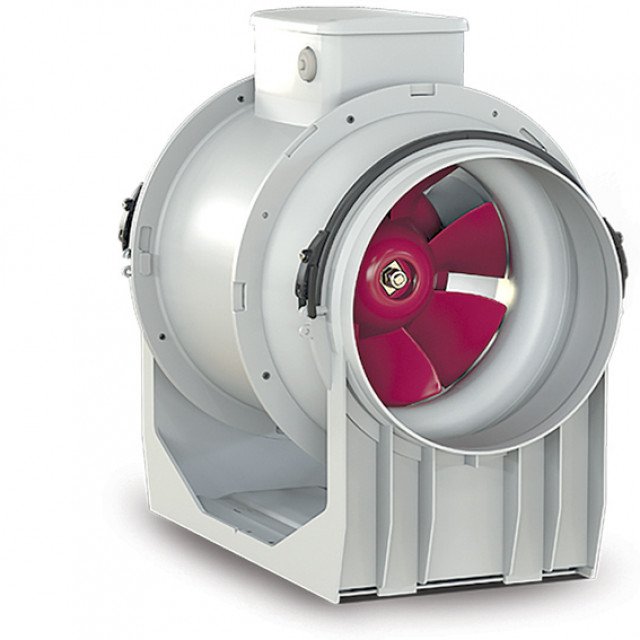

Vortice Lineo Fan | 40W Motor Power | 385 m³/h Airflow | 20 dB Noise Level by Allvent
Vortice Lineo Fan with 40W motor power and 385 m³/h airflow—ideal for residential ventilation in small spaces. Built for bathrooms and kitchens, it operates at a whisper-quiet 20 dB, ensuring efficient air movement without disturbance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Vortice Lineo Fan | 40W Motor Power | 385 m³/h Airflow | 20 dB Noise Level by Allvent
Brand: Allvent
SKU: ALV17146
Alternatively Known As: Vortice Lineo Fan, Lineo 150 Ventilation Fan, Residential Exhaust Fan
Technical Specifications
- Voltage: 220–240V, 50/60Hz
- Speed: Low
- Motor Power: 40W
- Current: 0.18 Amps
- RPM: 1580
- Max Airflow: 385 m³/h
- Max Pressure: 106.9 Pa
- Noise Level: 20 dB(A) at 3 meters
- Max Operating Temperature: 41.4°C
- Dimensions (H x L x W): 150mm x 150mm x 150mm
- Weight: 6 kg
Key Features
- Designed to fit into small spaces
- Easily removed to facilitate maintenance
- Optimised air flow for maximised performance and increased efficiency
- Minimal noise emissions
- High flow rates and flow around the axis of the impeller
- Long-life motors with shafts mounted on ball bearings for virtually maintenance-free operation
- Timer models available
Professional Installation Requirements
- Professional installation by a licensed electrician or qualified ventilation technician is recommended to ensure optimal performance and compliance with local regulations.
Applications
- Residential ventilation for small spaces
- Bathroom and kitchen exhaust
- General indoor air circulation
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
- Energy-efficient motor reduces power consumption
- Optimised airflow improves ventilation efficiency, reducing energy waste
Warranty Information
Standard manufacturer warranty applies; please refer to Allvent for specific warranty details.
Available Now
The Allvent Vortice Lineo Series is available for immediate purchase, ideal for residential ventilation applications requiring efficient and quiet air movement.
