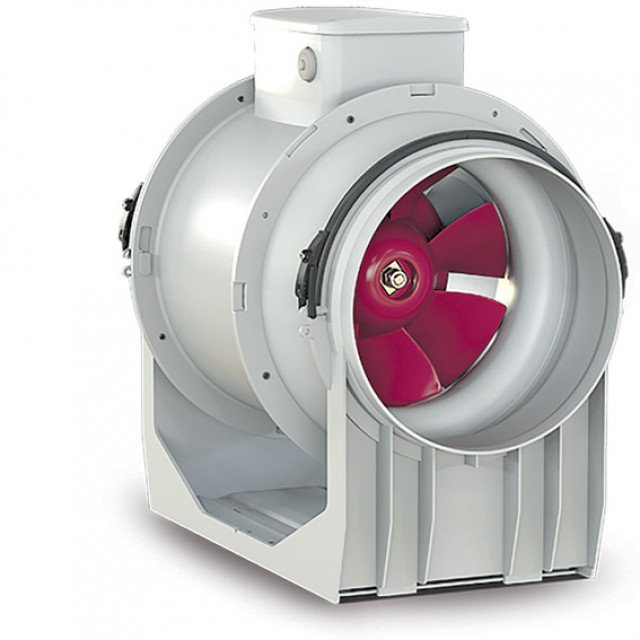

Vortice Lineo Series Ventilation Fan | 180 m³/h Airflow | 27.5 dB Noise Level | Compact Design by Allvent
<p>The Vortice Lineo Series ventilation fan offers 180 m³/h airflow and operates at a quiet 27.5 dB, making it ideal for small residential spaces like bathrooms and kitchens. Designed for easy maintenance and optimized for energy efficiency, this fan ensures effective ventilation without disturbing your peace.</p>
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Vortice Lineo Series Ventilation Fan | 180 m³/h Airflow | 27.5 dB Noise Level | Compact Design by Allvent
Brand: Allvent
SKU: ALV17144
Alternatively Known As: Vortice Lineo Fan, Residential Ventilation Fan, Small Space Ventilation Fan
Technical Specifications
- Voltage: 220–240V, 50/60Hz
- Speed: Low
- Motor Power: 20W
- Current: 0.09 Amps
- RPM: 1860
- Maximum Airflow: 180 m³/h
- Maximum Pressure: 50 Pa
- Noise Level: 27.5 dB(A) at 3 meters
- Maximum Operating Temperature: 30.7°C
- Dimensions (H x L x W): 100mm x 100mm x 100mm
- Weight: 2 kg
Key Features
- Designed to fit into small spaces
- Easily removed to facilitate maintenance
- Optimised air flow for maximised performance and increased efficiency
- Minimal noise emissions
- High flow rates and flow around the axis of the impeller
- Long-life motors with shafts mounted on ball bearings for virtually maintenance-free operation
- Timer models available
Professional Installation Requirements
- Professional installation by a qualified electrician or ventilation specialist is recommended to ensure optimal performance and compliance with local regulations.
Applications
- Residential ventilation for small spaces
- Ventilation in bathrooms, kitchens, and utility rooms
- Suitable for residential buildings requiring efficient airflow
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
- Optimised airflow reduces energy consumption
- Long-life motor design reduces waste and replacement frequency
- Low noise emissions contribute to a better living environment
Warranty Information
Standard manufacturer warranty applies; please refer to Allvent for specific warranty details.
Available Now
The Allvent Vortice Lineo Series is available for immediate purchase, ideal for residential ventilation applications in small spaces.
Exhaust Fan Airflow Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
