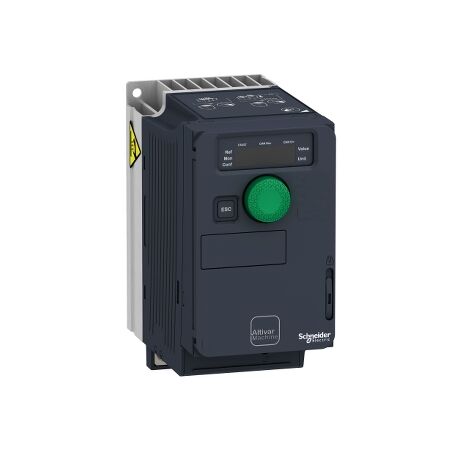

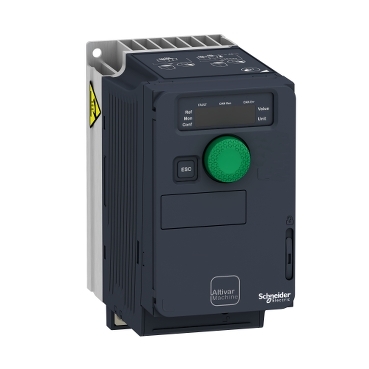

VSD .75KW 200V 1PH Compact Control | Variable Speed Drive | Integrated EMC Filter | Energy-Saving Operation | @Pack of 1 | by Clipsal
The VSD .75KW 200V 1PH Compact Control is a variable speed drive designed for 0.75kW motors, perfect for industrial automation and HVAC systems. With an integrated EMC filter and robust protection features, it ensures energy-saving operation while optimizing motor speed. Ideal for licensed electricians, this compact design simplifies installation and enhances equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VSD .75KW 200V 1PH Compact Control | Variable Speed Drive | Integrated EMC Filter | Energy-Saving Operation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV320U07M2C
Alternatively Known As: Variable Speed Drive 0.75kW, VSD 0.75kW 200V Single Phase, ATV320U07M2C, Compact VSD Clipsal, Motor Drive 0.75kW
Technical Specifications
- Power Rating: 0.75kW (1HP)
- Input Voltage: 200-240V AC, Single Phase
- Output Voltage: 200-240V AC, Three Phase
- Output Frequency: 0.1 to 599Hz
- Control Method: V/F, Sensorless Vector Control
- Integrated EMC filter
- Overload Capacity: 150% for 60 seconds
- Operating Temperature: -10°C to +50°C
- Protection: Overload, short-circuit, overvoltage, undervoltage, overtemperature
- Dimensions (H x L x W): 143mm x 135mm x 72mm
- Weight: 1.2 kg
Key Features
- Variable speed drive for 0.75kW motors
- Single phase 200V input
- Compact design for easy installation
- Integrated control panel
- Energy-saving operation
- Robust protection features including overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- HVAC systems
- Pumps and fans
- Conveyor systems
- General motor speed control in manufacturing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear, extending equipment lifespan
- Supports efficient operation, lowering carbon footprint
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD .75KW 200V 1PH Compact Control (SCHATV320U07M2C) is available for immediate purchase. Ideal for industrial automation, HVAC, and motor control applications.
