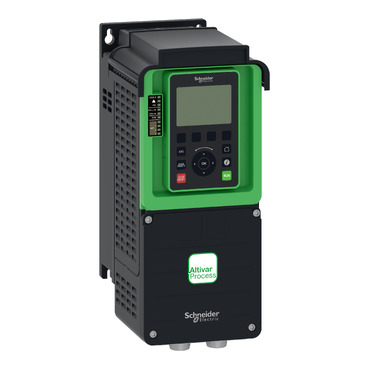

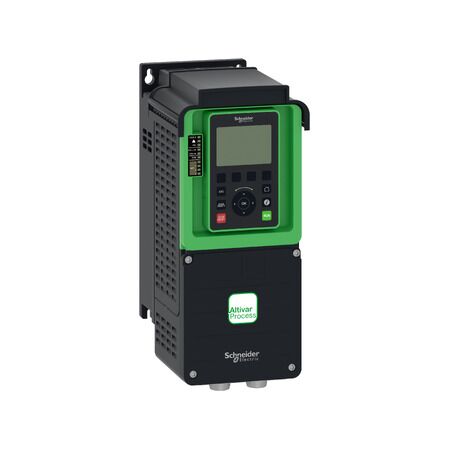

VSD IP21 3KW Variable Speed Drive | 400V/480V Input | Integrated EMC Filter | Compact Design | @Pack of 1 | by Clipsal
The VSD IP21 3KW Variable Speed Drive is engineered for robust motor control, supporting 400V/480V three-phase input. Ideal for industrial automation, HVAC systems, and conveyor applications, it features an integrated EMC filter to reduce electrical noise and a user-friendly LCD display for easy operation. Built for efficiency, it optimizes motor speed while minimizing mechanical wear and energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VSD IP21 3KW Variable Speed Drive | 400V/480V Input | Integrated EMC Filter | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630U30N4
Alternatively Known As: Variable Speed Drive, VSD 3kW, Clipsal VSD, Schneider ATV630U30N4, Frequency Inverter, Motor Drive, AC Drive
Technical Specifications
- Power Rating: 3kW
- Input Voltage: 380-480V AC, three-phase
- Output Voltage: 0-480V AC
- Input Frequency: 50/60Hz
- Output Frequency: 0.1-500Hz
- Protection Rating: IP21
- Integrated EMC filter
- Control Modes: V/F, sensorless vector
- Display: LCD keypad
- Operating Temperature: -10°C to +50°C
- Communication: Modbus, CANopen (optional expansion)
- Dimensions (H x L x W): 295mm x 232mm x 130mm
- Weight: 4.5 kg
Key Features
- 3kW power rating for robust motor control
- Supports 400V/480V three-phase input
- IP21 protection for indoor use
- Integrated EMC filter for reduced electrical noise
- Compact design for easy panel integration
- User-friendly interface with LCD display
- Multiple control modes including V/F and sensorless vector control
- Built-in safety features such as overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyor systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and maintenance needs
- Lowers overall power consumption in industrial applications
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD IP21 3KW 400V/480V (SCHATV630U30N4) is available for immediate purchase. Ideal for industrial motor control, HVAC, and automation applications.
