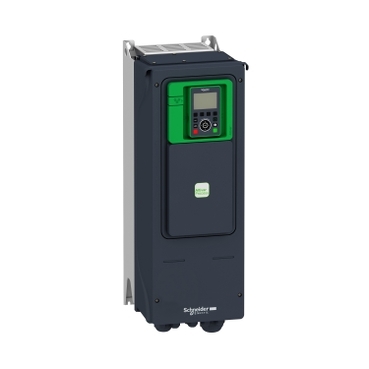

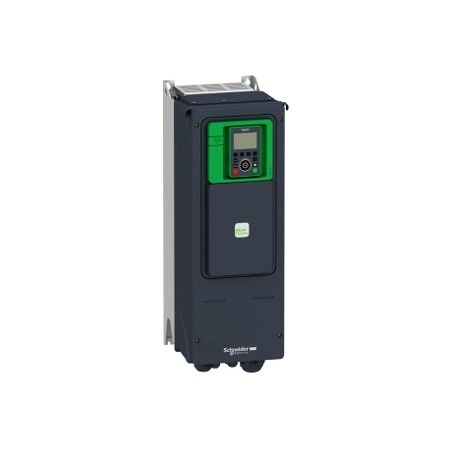

VSD IP55 0.75kW Variable Speed Drive | 3-Phase 400V | Integrated EMC Filter | Robust Design | @Pack of 1 | by Clipsal
The VSD IP55 0.75kW Variable Speed Drive is engineered for industrial automation, offering a robust design with an IP55 enclosure for dust and water protection. With a power output of 0.75kW and support for 3-phase 400V input, it optimizes motor speed to reduce energy consumption and extend equipment life. Ideal for pumps, fans, and HVAC systems, this drive features an easy-to-use interface and integrated EMC filter for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VSD IP55 0.75kW Variable Speed Drive | 3-Phase 400V | Integrated EMC Filter | Robust Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV650U07N4
Alternatively Known As: Variable Speed Drive, VSD 0.75kW, Clipsal VSD, SCHATV650U07N4, 0.75kW Inverter, 400V VSD, IP55 Motor Drive
Technical Specifications
- Power Output: 0.75kW (750W)
- Input Voltage: 3-phase 380-480V AC
- Output Voltage: 3-phase 0-480V AC
- Frequency Range: 0.1 to 599Hz
- Enclosure Rating: IP55 (dust and water protected)
- Integrated EMC filter
- Control Method: V/F, sensorless vector control
- Operating Temperature: -10°C to +50°C
- Display: LED/LCD interface
- Communication: Modbus RTU (RS485)
- Dimensions (H x L x W): 184mm x 152mm x 110mm
- Weight: 3.5 kg
Key Features
- IP55 rated enclosure for dust and water protection
- 0.75kW (750W) power output
- Supports 3-phase 400V input
- Robust design for harsh environments
- Integrated EMC filter
- Easy-to-use interface for configuration and monitoring
- Energy-saving motor control
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyor systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear and tear, extending equipment life
- Supports efficient operation in industrial processes
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD IP55 0.75kW 400V/48 (SCHATV650U07N4) is available for immediate purchase. Ideal for industrial motor control applications requiring robust and reliable performance.
