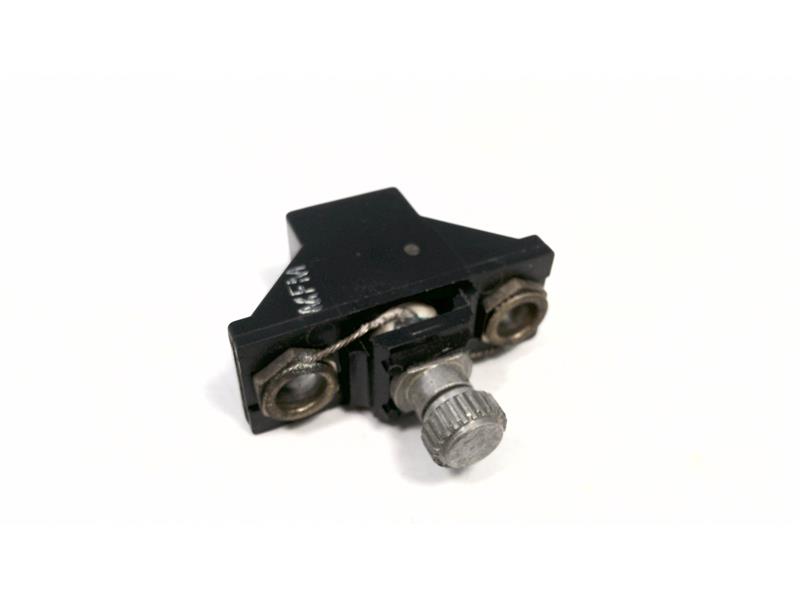

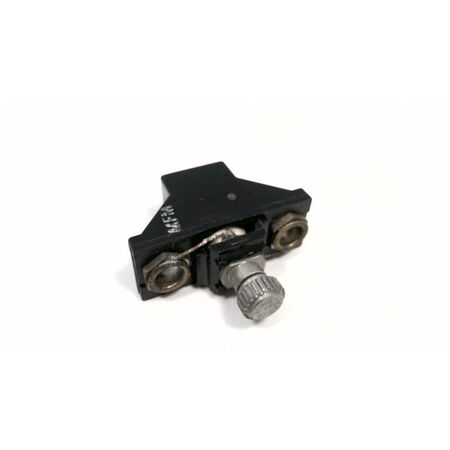

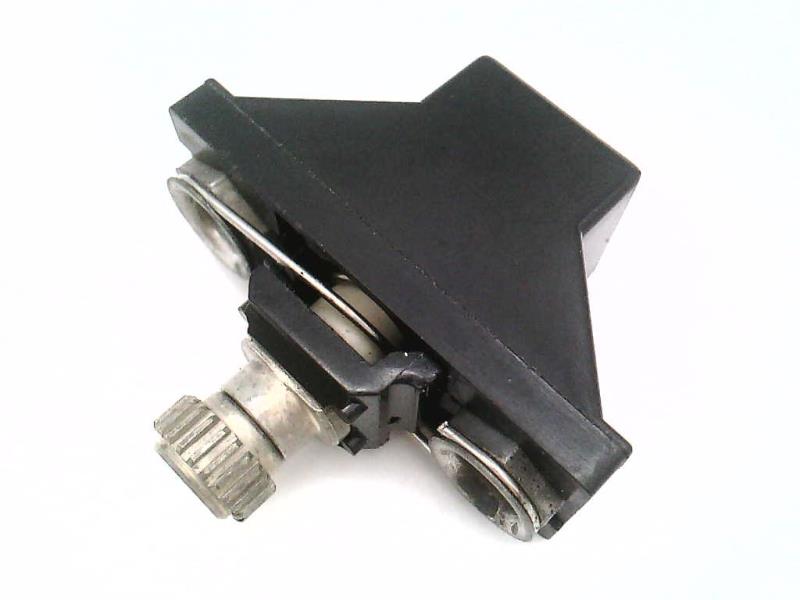

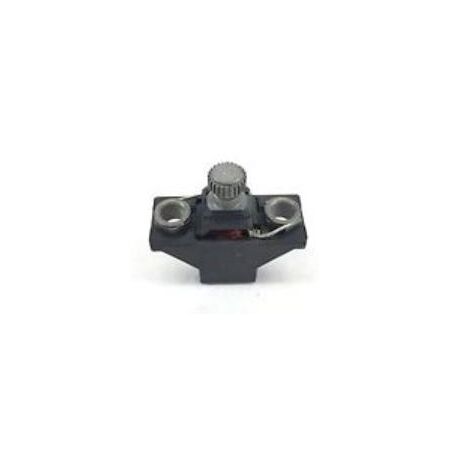

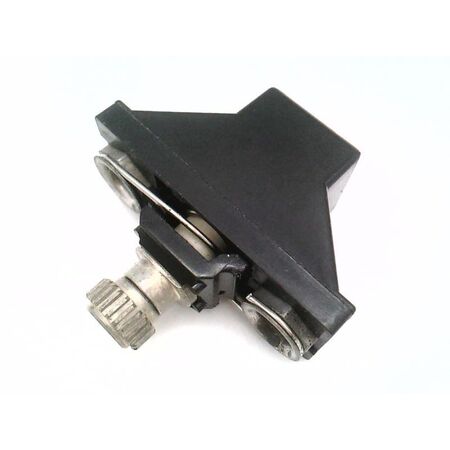

Product Name/Title: Allen-Bradley W Series Heater Element for Overload Relay
Brand: Allen-Bradley

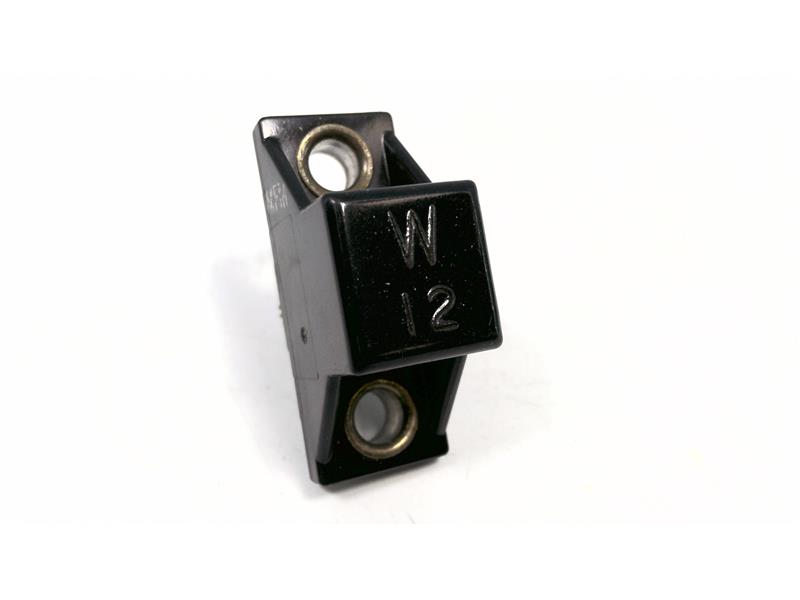

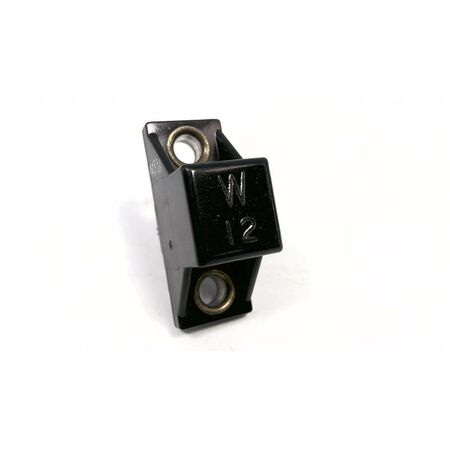

SKU: W12
Alternatively Known As: Overload Relay Heater Element, W Series Heater, Allen-Bradley Overload Heater
Technical Specifications
- Type: W Series Heater Element
- Compatibility: Bulletin 500 line starters
- Protection Class: Class 20
- Current Rating: 0.22 Amp @ Size 00-0, 0.23 Amp @ Size 1
- Material: Eutectic alloy
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection rating
- Current ratings: 0.22 Amp for Size 00-0, 0.23 Amp for Size 1
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and overload relay systems.
Applications
- Industrial motor control systems
- Overload protection in electrical starters
- Automation and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment downtime.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W Series Heater Element is available now for immediate purchase, ideal for industrial motor control and overload protection applications.
