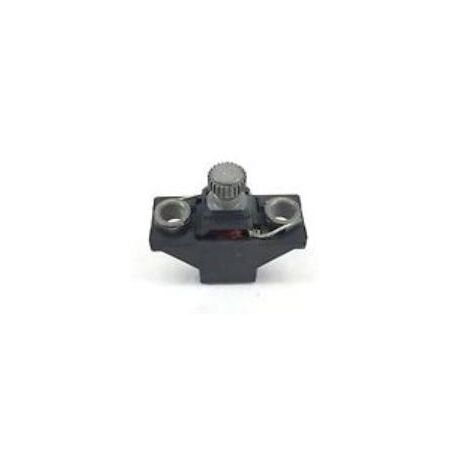

W Series Heater Element for Overload Relay | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The W Series Heater Element for Overload Relay is designed for reliable overload protection in industrial motor control systems. Made from eutectic alloy, it is compatible with Bulletin 500 line starters and features a Class 20 protection rating. With current ratings of 0.22 Amp for Size 00-0 and 0.23 Amp for Size 1, this heater element enhances motor efficiency and reduces energy waste, making it ideal for automation and manufacturing equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: W Series Heater Element
- Compatibility: Bulletin 500 line starters
- Protection Class: Class 20
- Current Rating: 0.22 Amp @ Size 00-0, 0.23 Amp @ Size 1
- Material: Eutectic alloy
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection rating
- Current ratings: 0.22 Amp for Size 00-0, 0.23 Amp for Size 1
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and overload relay systems.
Applications
- Industrial motor control systems
- Overload protection in electrical starters
- Automation and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment downtime.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W Series Heater Element is available now for immediate purchase, ideal for industrial motor control and overload protection applications.
