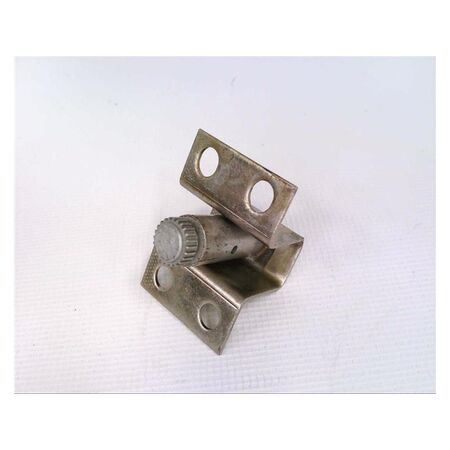

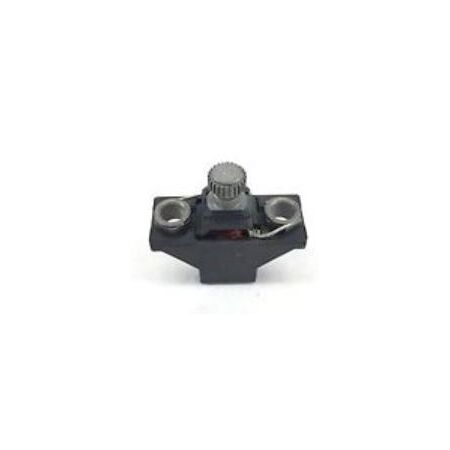

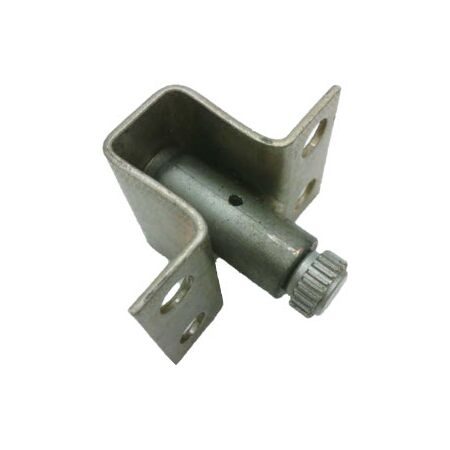

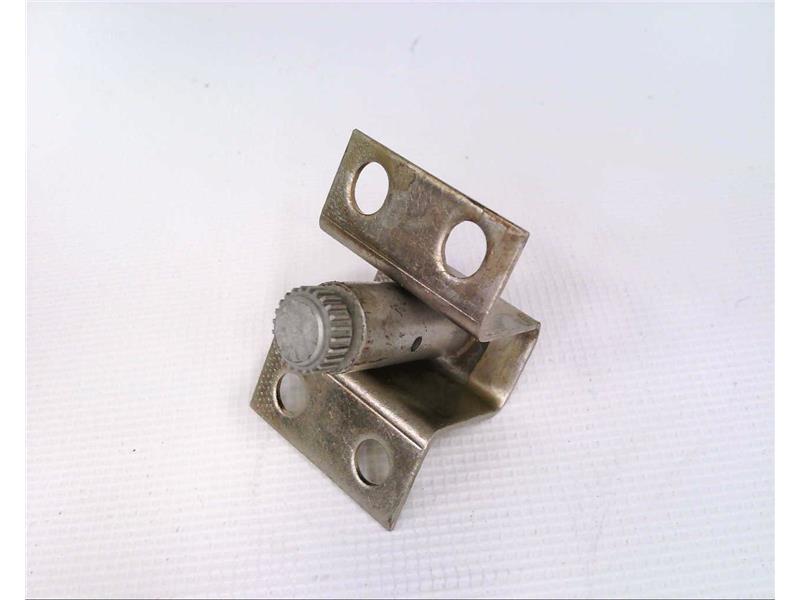

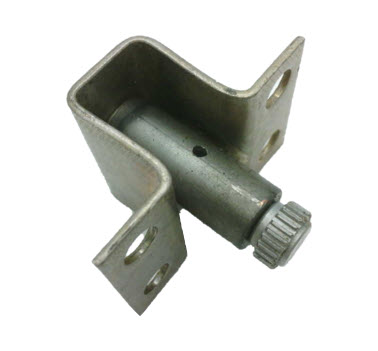

Product Name/Title: Allen-Bradley W76 Heater Element for W Series Overload Relay
Brand: Allen-Bradley
SKU: W76
Alternatively Known As: W76 Heater Element, Allen-Bradley Overload Relay Heater, W Series Heater Element
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Compatibility: Bulletin 500 line starters
- Protection Class: 20
- Current Rating: 88 Amp @ Size 3, 95 Amp @ Size 4
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with W Series Bulletin 500 line starters
- Class 20 protection
- Rated for 88 Amp at Size 3 and 95 Amp at Size 4
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with industrial motor control equipment to ensure proper fit and function.
Applications
- Industrial motor protection
- Electrical control panels
- Automation systems using Bulletin 500 line starters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment replacement.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W76 Heater Element is available for immediate purchase, ideal for industrial motor protection and control applications.
