W Series Overload Relay Heater Element | Eutectic Alloy | 88 Amp & 95 Amp Ratings | by Allen-Bradley
The W Series Overload Relay Heater Element is designed for reliable industrial motor protection, featuring a eutectic alloy construction and compatibility with Bulletin 500 line starters. Rated for 88 Amp at Size 3 and 95 Amp at Size 4, this heater element ensures optimal performance and efficiency in electrical control panels and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Compatibility: Bulletin 500 line starters
- Protection Class: 20
- Current Rating: 88 Amp @ Size 3, 95 Amp @ Size 4
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with W Series Bulletin 500 line starters
- Class 20 protection
- Rated for 88 Amp at Size 3 and 95 Amp at Size 4
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with industrial motor control equipment to ensure proper fit and function.
Applications
- Industrial motor protection
- Electrical control panels
- Automation systems using Bulletin 500 line starters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment replacement.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now

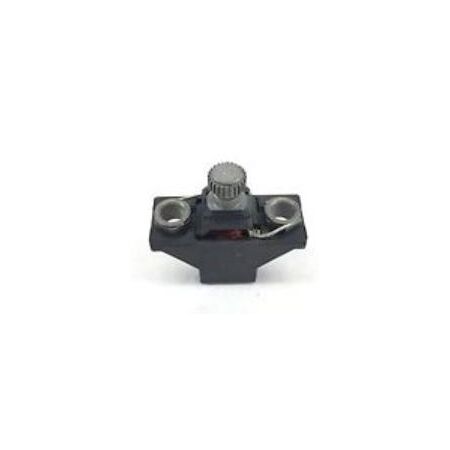

The Allen-Bradley W76 Heater Element is available for immediate purchase, ideal for industrial motor protection and control applications.
