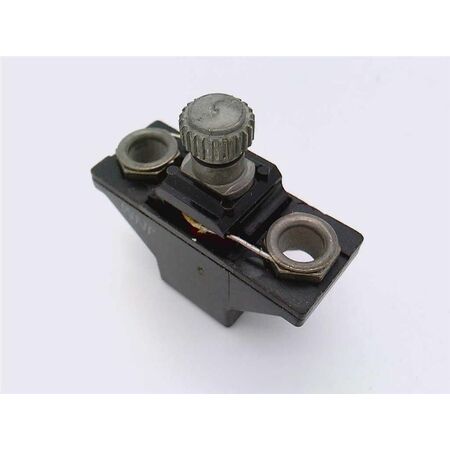

W Series Overload Relay Heater Element | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The W Series Overload Relay Heater Element is designed for reliable overload protection in industrial motor control systems. Featuring a eutectic alloy construction and a Class 20 protection rating, it ensures optimal performance with Bulletin 500 line starters. Ideal for automation and manufacturing equipment, this heater element enhances motor efficiency by preventing overload damage and reducing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Protection Class: 20
- Current Rating: 0.67 Amp @ Size 00-0, 0.66 Amp @ Size 1
- Compatible with Bulletin 500 line starters
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection rating
- Current ratings: 0.67 Amp for Size 00-0, 0.66 Amp for Size 1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems and compliance with electrical standards.
Applications
- Industrial motor control systems
- Overload protection in electrical starters
- Automation and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment downtime.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now

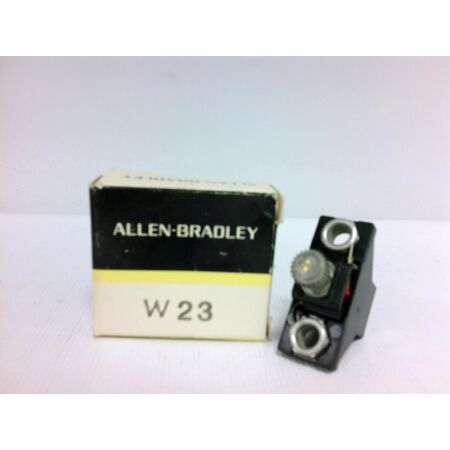

The Allen-Bradley W23 Heater Element is available for immediate purchase, ideal for industrial motor control and overload protection applications.
