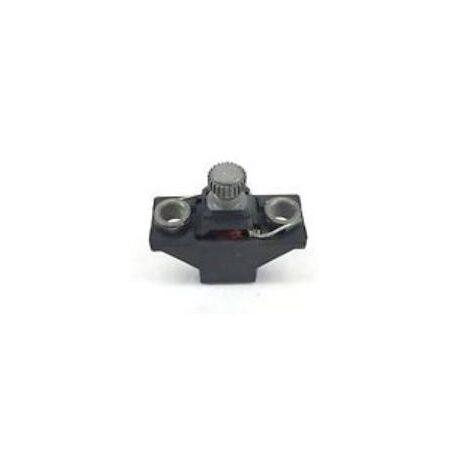

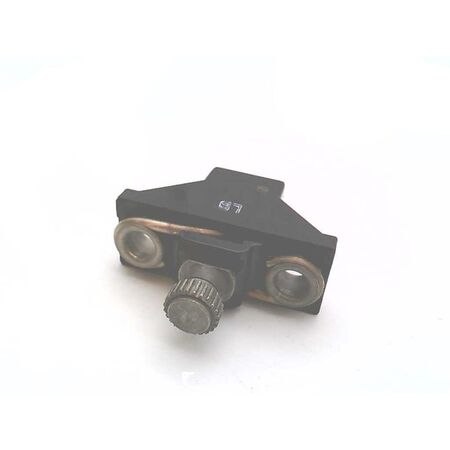

W Series Overload Relay Heater Element | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The W Series Overload Relay Heater Element is designed for reliable motor protection, featuring a eutectic alloy construction and Class 20 protection. Ideal for industrial applications, it ensures optimal performance with current ratings of 14.6 Amp to 15.1 Amp, making it perfect for electrical control panels and automation systems. Enhance your motor efficiency and prevent overload damage with this essential component.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Protection Class: 20
- Current Ratings: 14.6 Amp (Size 00-0), 15.0 Amp (Size 1), 15.1 Amp (Size 2)
- Compatible with Bulletin 500 line starters
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection
- Rated for 14.6 Amp at Size 00-0
- Rated for 15.0 Amp at Size 1
- Rated for 15.1 Amp at Size 2
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems and compliance with electrical standards.
Applications
- Industrial motor protection
- Electrical control panels
- Automation systems requiring overload protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment replacement.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W56 Heater Element is available for immediate purchase, ideal for industrial and commercial motor protection applications.
