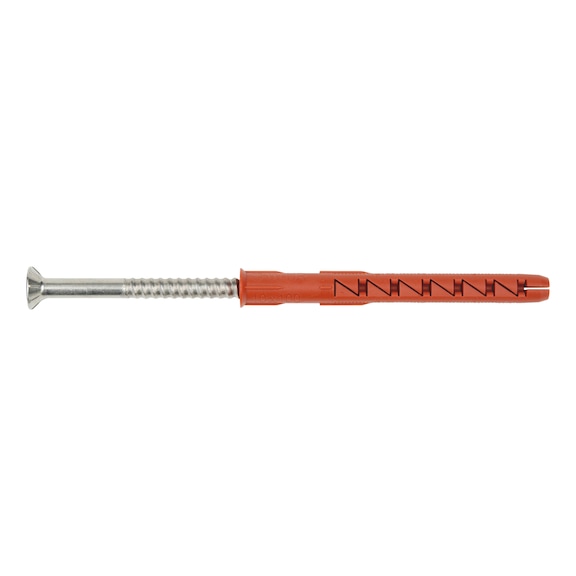

W-UR 10 SymCon Plastic Frame Fixing | A4 Stainless Steel Screw | Earthquake-Proof | 50 PCS | by Wurth
W-UR 10 SymCon Plastic Frame Fixing is designed for secure anchoring in masonry and concrete, featuring an A4 stainless steel screw for durability. Ideal for extreme weather conditions, this fixing offers minimal installation work with pre-assembled components, ensuring reliable performance and compliance with structural requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-UR 10 SymCon Plastic Frame Fixing | A4 Stainless Steel Screw | Earthquake-Proof | 50 PCS | by Wurth
Brand: Wurth
SKU: 5911010102
Alternatively Known As: Plastic frame anchor, SymCon anchor, stainless steel countersunk screw fixing, masonry anchor, concrete fixing screw
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 80 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Attachment height: 40 mm
- Material of screw: Stainless steel A4
- Internal drive: AW40
- Head type: Countersunk head
- Approval: ETA-11/0309
- Type description: W-UR 10 SymCon A4, countersunk head screw
- Temperature resistance: 50°C / 80°C
- Dimensions (H x L x W): 80mm x 80mm x 10mm
- Weight: 0.05 kg
Key Features
- Special anchor geometry for immediate load-bearing capacity with ETA assessment
- Optimal attachment for concrete with general type approval for individual fixing points
- Virtually no spinning of the anchor sleeve due to low installation torque and expansion
- Reliable follow-up expansion capability due to ingenious anchor geometry
- Earthquake-proof anchoring in concrete, tested and approved
- Minimal installation work as anchor sleeve and special screw are pre-assembled
- Does not require an additional U-washer and prevents contact corrosion
- Approved for anchors in redundant non-structural systems for secure installation
- Ideal for fastening in extreme weather conditions
- Multiple embedment depths for concrete (40, 50, 70 mm) and masonry (50, 70 mm)
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper anchoring and compliance with structural requirements.
Applications
- Masonry fastening
- Autoclaved aerated concrete fixing
- Concrete anchoring
- Non-load-bearing system installations
- Extreme weather condition fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel material reduces need for frequent replacements
- Pre-assembled components minimize waste and installation time
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The W-UR 10 SymCon Plastic Frame Fixing with A4 Stainless Steel Countersunk Head Screw is available for immediate purchase, ideal for secure fastening in masonry, concrete, and non-load-bearing systems.
