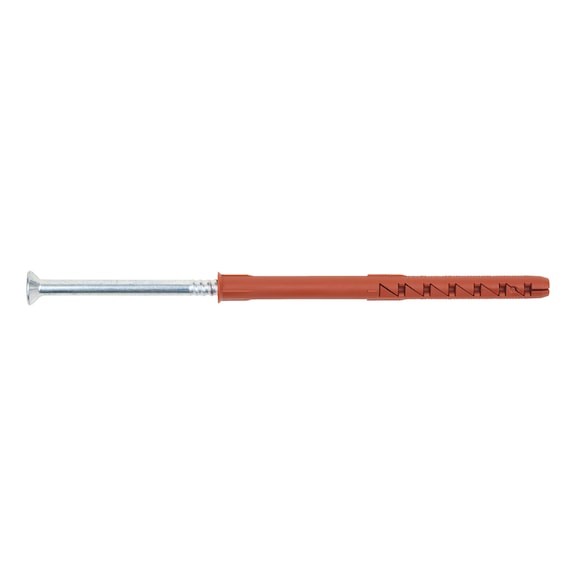

W UR 10 SymCon Plastic Frame Fixing | Earthquake-Proof | Zinc Plated Steel Screw | @Pack of 50 | by Wurth
W UR 10 SymCon Plastic Frame Fixing is designed for secure anchoring in masonry, autoclaved aerated concrete, and concrete. With its earthquake-proof certification and zinc plated steel screw, it ensures reliable performance under load. Ideal for professionals seeking durable and efficient installation solutions, this fixing minimizes installation work while providing optimal load-bearing capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W UR 10 SymCon Plastic Frame Fixing | Earthquake-Proof | Zinc Plated Steel Screw | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5911010004
Alternatively Known As: Plastic frame anchor, SymCon anchor, Zinc plated countersunk screw anchor, Concrete fixing anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 115 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Attachment height: 75 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of the screw: Zinc plated
- Head type: Countersunk head
- Approval: ETA-11/0309
- Dimensions (H x L x W): 115mm x 10.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Special anchor geometry with immediate load-bearing capacity
- ETA assessment for masonry, autoclaved aerated concrete, and concrete
- Optimal installation properties with low installation torque and expansion
- Reliable follow-up expansion capability due to ingenious anchor geometry
- Earthquake-proof anchoring tested and approved
- Minimal installation work with pre-assembled anchor sleeve and special screw
- No additional U-washer required, preventing contact corrosion
- Virtually no undercutting due to optimal compression of the anchor sleeve
- Improved load transmission through even, continuous load transfer across the entire expansion area
- Multiple embedment depths for concrete and masonry
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with structural and safety standards.
Applications
- Masonry anchoring
- Autoclaved aerated concrete fixing
- Concrete fixing
- Earthquake-proof anchoring in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Zinc plating provides corrosion resistance, extending product life
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The W UR 10 SymCon plastic frame fixing is available for immediate purchase, ideal for secure anchoring in masonry, concrete, and autoclaved aerated concrete applications.
