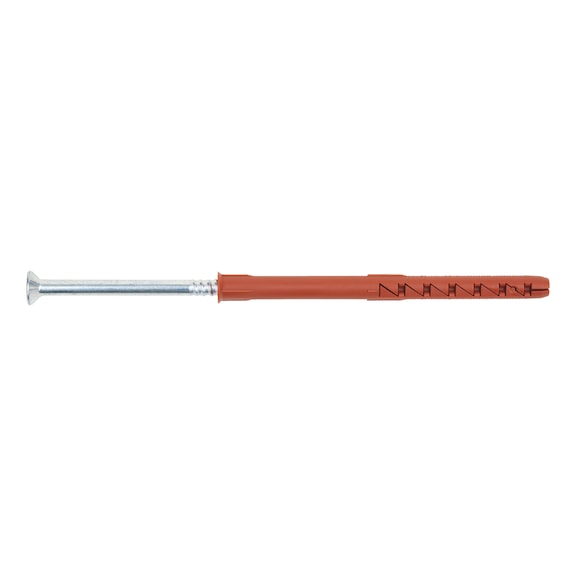

W UR 10 SymCon Plastic Frame Fixing | Zinc Plated Steel Screw | Earthquake-Proof | @Pack of 50 | by Wurth
W UR 10 SymCon Plastic Frame Fixing is designed for secure anchoring in masonry and concrete, featuring a zinc plated steel screw for enhanced durability. Ideal for earthquake-proof applications, this fixing offers immediate load-bearing capacity and minimal installation work, making it perfect for professional tradespeople looking for reliable solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W UR 10 SymCon Plastic Frame Fixing | Zinc Plated Steel Screw | Earthquake-Proof | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5911010003
Alternatively Known As: Plastic frame fixing anchor, SymCon anchor screw, W UR 10 SymCon fixing, zinc plated countersunk screw anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Attachment height: 60 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Approval: ETA-11/0309
- Type description: W-UR 10 SymCon, countersunk head screw
- Temperature resistance: 50°C / 80°C
- Dimensions (H x L x W): 100mm x 10mm x 10mm
- Weight: 0.05 kg
Key Features
- Special anchor geometry with immediate load-bearing capacity and ETA assessment
- Optimal installation properties with general type approval for individual fixing points in concrete
- Virtually no spinning of the anchor sleeve due to low installation torque and expansion
- Reliable follow-up expansion capability due to ingenious anchor geometry
- Earthquake-proof anchoring in concrete, tested and approved
- Minimal installation work as anchor sleeve and special screw are pre-assembled
- Does not require an additional U-washer and prevents contact corrosion
- Virtually no undercutting due to optimal compression of the anchor sleeve by screwing in the screw
- Improved load transmission through even, continuous load transfer across the entire expansion area
- Multiple embedment depths for concrete (40, 50, 70 mm) and masonry (50, 70 mm)
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure proper anchoring and compliance with structural requirements.
Applications
- Masonry anchoring
- Autoclaved aerated concrete fixing
- Concrete fixing
- Earthquake-proof anchoring in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Zinc plating provides corrosion resistance, extending product life and reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth W UR 10 SymCon plastic frame fixing is available for immediate purchase, ideal for secure anchoring in masonry, concrete, and autoclaved aerated concrete applications.
