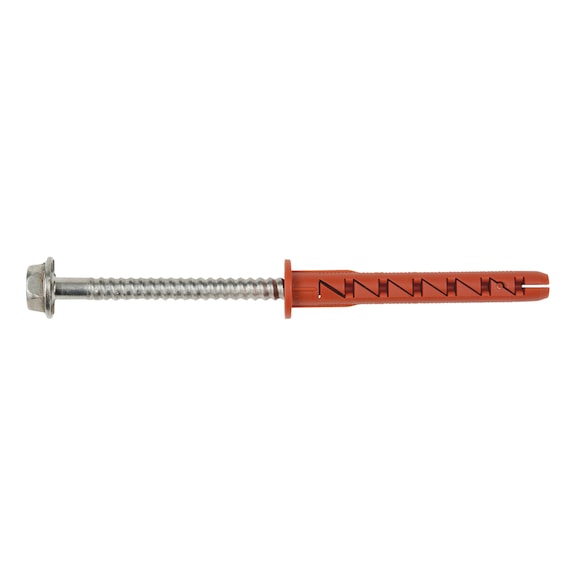

W UR F 10 SymCon Plastic Frame Fixing | A4 Stainless Steel Hexagon Head | High Load Capacity | @Pack of 40 | by Wurth
W UR F 10 SymCon Plastic Frame Fixing is designed for high load-bearing applications in masonry and concrete. Featuring an A4 stainless steel hexagon head and a special anchor geometry, it ensures immediate load-bearing capacity and reliable fastening. Ideal for professionals, this fixing solution simplifies installation while providing strong anchorage in various materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W UR F 10 SymCon Plastic Frame Fixing | A4 Stainless Steel Hexagon Head | High Load Capacity | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5911010303
Alternatively Known As: Plastic frame fixing bolt, SymCon anchor bolt, stainless steel hex bolt anchor, masonry fixing bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Attachment height: 60 mm
- Screw material: Stainless steel A4
- Head type: Hexagon washer head
- Approval: ETA-11/0309
- Type description: W-UR F 10 SymCon A4, hexagonal bolt
- Temperature resistance: 50°C / 80°C
- Dimensions (H x L x W): 100mm x 10.5mm x 10mm
- Weight: 0.15 kg
Key Features
- Special anchor geometry with immediate load-bearing capacity
- ETA assessment for high loads in masonry, aerated concrete, and concrete
- Reliable fastening with general type approval for individual fixing points in concrete
- Teeth expand in four directions and claw into base material for strong anchorage
- Friction locking between anchor sleeve and base material
- High-quality polyamide anchor sleeve with strong anti-rotation lock
- No additional U-washer required, preventing contact corrosion
- Pre-assembled anchor sleeve and special screw for easy and time-saving installation
- Hammer-in stop prevents premature expansion during installation
- Multiple embedment depths for masonry and concrete
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct embedment depth and secure fastening according to ETA approval.
Applications
- Masonry fastening
- Autoclaved aerated concrete fixing
- Concrete fastening
- High load-bearing construction applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel material reduces need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth W UR F 10 SymCon plastic frame fixing with A4 stainless steel hexagon head bolt is available for immediate purchase, ideal for high load-bearing masonry and concrete fastening applications.
