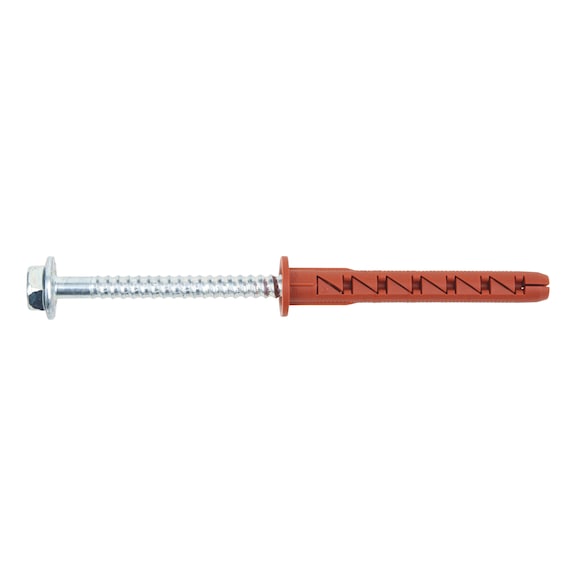

W-UR F 10 SymCon Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | High Load Capacity | @Pack of 40 | by Wurth
W-UR F 10 SymCon Plastic Frame Fixing is designed for high load masonry and concrete applications, featuring a zinc plated steel hexagon head bolt for enhanced durability. With a special anchor geometry providing immediate load-bearing capacity, this fixing solution is ideal for construction and building fastening, ensuring secure anchoring in various materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-UR F 10 SymCon Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | High Load Capacity | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5911010203
Alternatively Known As: Plastic frame anchor bolt, SymCon anchor fixing, Hexagon head anchor bolt, Zinc plated frame fixing bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Attachment height: 60 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Hexagon washer head
- Approval: ETA-11/0309
- Type description: W-UR F 10 SymCon, hexagonal bolt
- Temperature resistance: 50°C / 80°C
- Dimensions (H x L x W): 100mm x 10.5mm x 10mm
- Weight: 0.15 kg
Key Features
- Special anchor geometry providing immediate load-bearing capacity
- ETA assessment for high loads in masonry, aerated concrete, and concrete
- Reliable follow-up expansion capability with teeth expanding in four directions
- Anchorage via friction locking between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Hammer-in stop prevents premature expansion during installation
- Multiple embedment depths for masonry and concrete applications
- Does not require additional U-washer and prevents contact corrosion
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct embedment depth and secure anchoring according to structural requirements.
Applications
- Masonry anchoring
- Autoclaved aerated concrete fixing
- Concrete fixing for high load applications
- Construction and building fastening requiring secure anchoring
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Pre-assembled design minimizes installation time and waste
Warranty Information
Warranty terms as per Wurth standard product warranty policies.
Available Now
The W-UR F 10 SymCon plastic frame fixing with zinc plated steel hexagon head bolt 40 PCS is available for immediate purchase, ideal for high load masonry and concrete fixing applications.
