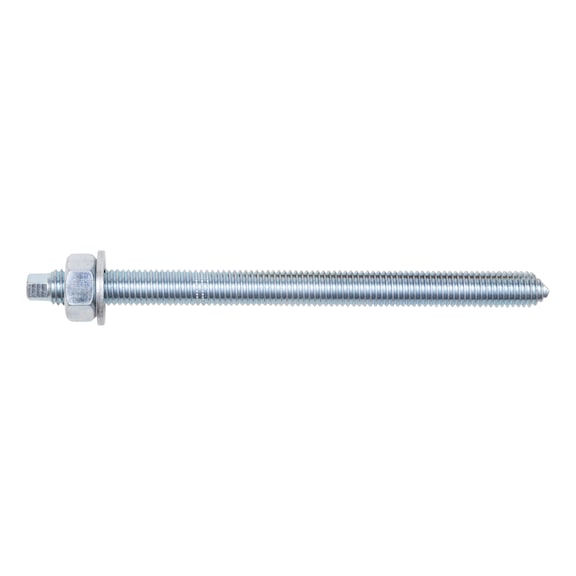

W VD A S Anchor Rod M10x130 | Zinc Plated Steel | Corrosion Resistant | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
W VD A S Anchor Rod M10x130 is designed for reliable concrete anchoring, featuring zinc-plated steel for enhanced corrosion resistance. Ideal for use with W-VD bonded anchor capsule systems and WIT injection systems, this anchor rod ensures secure installations in construction and industrial projects, backed by multiple ETA certifications for reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W VD A S Anchor Rod M10x130 | Zinc Plated Steel | Corrosion Resistant | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5915110130
Alternatively Known As: Zinc Plated Anchor Rod M10, W-VD Anchor Rod, Injection System Anchor Rod, Concrete Anchor Rod M10x130
Technical Specifications
- Type description: W-VD-A/S 5.8
- Metric anchor diameter: M10
- Property class: 5.8
- Attachment height (t fix): 30 mm
- Anchor length (l): 130 mm
- Effective anchoring depth (h ef): 90 mm
- Nominal drill-bit diameter cartridge system (d 0): 12 mm
- Nominal drill-bit diameter injection system (d 0): 12 mm
- Drill hole depth (h 0): 90 mm
- Material: Steel
- Surface: Zinc plated
- Approvals: ETA-06/0074, ETA-12/0164, ETA-12/0569, ETA-17/0127, ETA-19/0542, ETA-20/0647, ETA-20/1038, ETA-21/0168
- Dimensions (H x L x W): 130mm x 130mm x 10mm
- Weight: 0.2 kg
Key Features
- Zinc-plated steel construction for corrosion resistance
- Anchor rod with point angle and hexagon socket for rotation-impact insertion
- Compatible with W-VD and WIT injection systems
- Approved under multiple ETA certifications for reliability
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with injection and bonded anchor systems to ensure compliance with structural and safety standards.
Applications
- Concrete anchoring with W-VD bonded anchor capsule systems
- Use with WIT injection systems in concrete
- Suitable for compound anchor cartridge systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing replacement waste.
Warranty Information
Warranty as per Wurth standard terms and conditions; typically covers manufacturing defects.
Available Now
The Wurth W VD A S Zinc Plated Steel Anchor Rod M10x130 is available for immediate purchase, ideal for concrete anchoring applications in construction and industrial projects.
