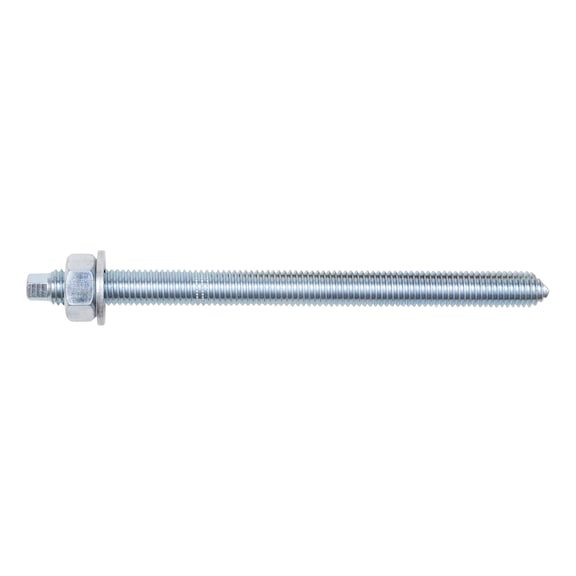

W VD A S Anchor Rod M16 | Zinc Plated Steel | 105mm Attachment Height | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
The W VD A S Anchor Rod M16 is designed for reliable concrete anchoring, featuring a zinc-plated steel construction for enhanced corrosion resistance and a 105mm attachment height. Ideal for use with W-VD bonded anchor capsule systems and WIT injection systems, this anchor rod ensures secure fastening in both structural and non-structural applications, making it a must-have for construction professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W VD A S Anchor Rod M16 | Zinc Plated Steel | 105mm Attachment Height | Compatible with W-VD & WIT Systems | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5915116250
Alternatively Known As: Zinc Plated Anchor Rod M16, W-VD Anchor Rod, Injection System Anchor Rod, Bonded Anchor Rod
Technical Specifications
- Type description: W-VD-A/S 5.8
- Metric anchor diameter: M16
- Property class: 5.8
- Attachment height (t fix): 105 mm
- Anchor length (l): 250 mm
- Effective anchoring depth (h ef): 125 mm
- Nominal drill-bit diameter cartridge system (d 0): 18 mm
- Nominal drill-bit diameter injection system (d 0): 18 mm
- Drill hole depth (h 0): 125 mm
- Material: Steel
- Surface: Zinc plated
- Approvals: ETA-06/0074, ETA-09/0040, ETA-12/0164, ETA-05/0034, ETA-12/0569, ETA-17/0127, ETA-19/0543, ETA-21/0168
- Dimensions (H x L x W): 250mm x 250mm x 16mm
- Weight: 1.2 kg
Key Features
- Zinc-plated steel construction for corrosion resistance
- Anchor rod with point angle and hexagon socket for rotation-impact insertion
- Compatible with compound anchor cartridge system W-VD and WIT injection systems
- Covered by multiple ETA approvals ensuring reliability and safety
Professional Installation Requirements
- Installation should be performed by trained professionals familiar with bonded anchor and injection systems to ensure compliance with ETA approvals and safety standards.
Applications
- Concrete anchoring with W-VD bonded anchor capsule systems
- Use with WIT injection systems in concrete
- Suitable for structural and non-structural fastening in construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating extends product life reducing replacement frequency and waste
- Durable steel construction supports sustainable building practices
Warranty Information
Warranty as per Wurth standard terms and conditions; covers manufacturing defects.
Available Now
The Wurth W VD A S Zinc Plated Steel Anchor Rod M16x250 is available for immediate purchase, ideal for concrete anchoring applications in construction and industrial projects.
