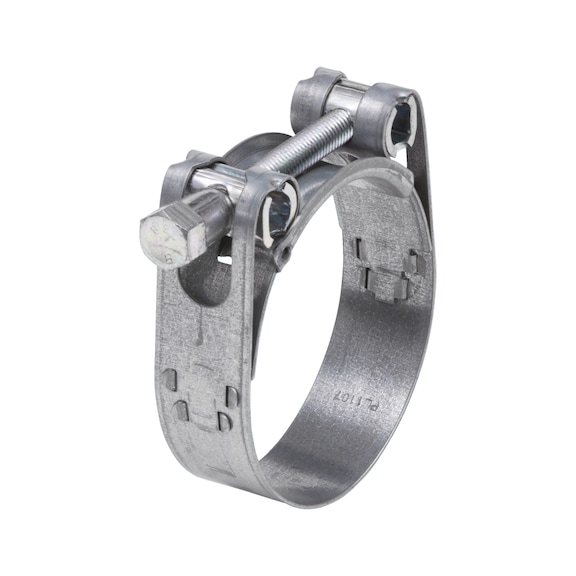

W1 Joint Bolt Clamp | Zinc Plated Steel | High Tightening Force | 25-27 mm Grip Range | @Pack of 5 | by Wurth
The W1 Joint Bolt Clamp is designed for securing hoses with high hardness or metal/plastic inserts, making it ideal for industrial and automotive applications. With a zinc plated steel construction, it offers excellent corrosion resistance and an extremely high tightening force for secure connections. Rounded edges and a hose bridge prevent injury and hose damage, ensuring a reliable and safe fastening solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W1 Joint Bolt Clamp | Zinc Plated Steel | High Tightening Force | 25-27 mm Grip Range | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 537118026
Alternatively Known As: Hose Clamp, Bolt Clamp, Hose Fastener, W1 Clamp
Technical Specifications
- Material of clamp band: Steel
- Surface of the clamp band: Zinc plated
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Min./max. grip range: 25-27 mm
- Width of band: 18 mm
- Width across flats: 8 mm
- Tightening torque: 8 Nm
- Standards: DIN 3017
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 27mm x 18mm
- Weight: 0.1 kg
Key Features
- Extremely high tightening force for secure connections
- Suitable for hard hoses and hoses with metal or plastic inserts
- Rounded edges and hose bridge to prevent injury and hose damage
- Zinc plated steel clamp band and screw for corrosion resistance
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper tightening and secure hose connection.
Applications
- Securing hoses with high hardness or metal/plastic inserts
- Industrial and automotive hose connections requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant materials reduce hazardous substances
- Durable zinc plating extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth W1 Joint Bolt Clamp 5 PCS is available now for immediate purchase. Ideal for industrial and automotive hose securing applications.
