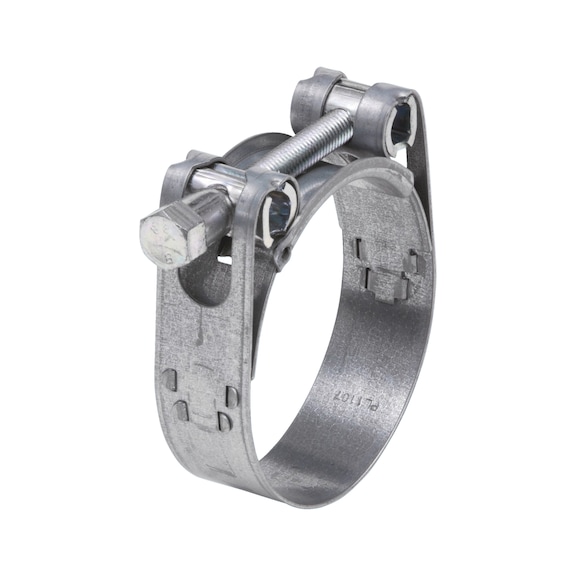

W1 Joint Bolt Clamp | Zinc Plated Steel | High Tightening Force | 29-31 mm Grip Range | @Pack of 5 | by Wurth
The W1 Joint Bolt Clamp is designed for securing hoses with high hardness or metal/plastic inserts, making it ideal for industrial and automotive applications. With a zinc plated steel construction, it offers excellent corrosion resistance and an extremely high tightening force for secure connections. Professional installation is recommended to ensure proper torque and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W1 Joint Bolt Clamp | Zinc Plated Steel | High Tightening Force | 29-31 mm Grip Range | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 537118030
Alternatively Known As: Hose Clamp, Bolt Clamp, Hose Clip, W1 Clamp
Technical Specifications
- Material of clamp band: Steel
- Surface of the clamp band: Zinc plated
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Min./max. grip range: 29-31 mm
- Width of band: 18 mm
- Width across flats: 8 mm
- Tightening torque: 8 Nm
- Standards: DIN 3017
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Extremely high tightening force for secure connections
- Suitable for hard hoses and hoses with metal or plastic inserts
- Rounded edges and hose bridge to prevent injury and hose damage
- Zinc plated steel clamp band and screw for corrosion resistance
Professional Installation Requirements
- Installation by a qualified technician or professional recommended to ensure proper tightening torque and secure hose connection.
Applications
- Securing hoses with high hardness or inserts made of metal or plastic
- Industrial and automotive hose connections requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant materials ensure reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth W1 Joint Bolt Clamp 5 PCS is available now for immediate purchase. Ideal for industrial and automotive hose securing applications.
