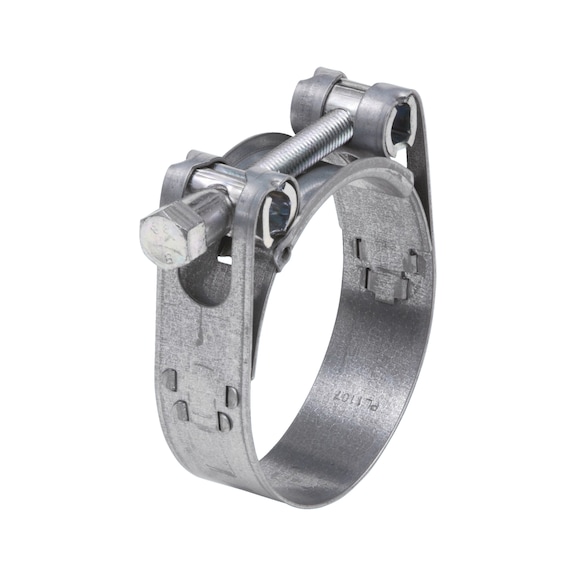

W1 Joint Bolt Clamp | Zinc Plated Steel | High Tightening Force | 34-37 mm Grip Range | @Pack of 5 | by Wurth
The W1 Joint Bolt Clamp is designed for securing hoses with high hardness levels, featuring a zinc-plated steel construction for durability and a grip range of 34-37 mm. Ideal for automotive and industrial applications, this clamp ensures secure connections with its extremely high tightening force and rounded edges to prevent hose damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W1 Joint Bolt Clamp | Zinc Plated Steel | High Tightening Force | 34-37 mm Grip Range | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 537118036
Alternatively Known As: W1 Hose Clamp, Joint Bolt Clamp, Hose Clamp Bolt, Wurth Hose Clamp
Technical Specifications
- Material of clamp band: Steel
- Surface of the clamp band: Zinc plated
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Min./max. grip range: 34-37 mm
- Width of band: 18 mm
- Width across flats: 8 mm
- Tightening torque: 8 Nm
- Standards: DIN 3017
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Extremely high tightening force for secure connections
- Rounded edges and hose bridge to prevent injury and hose damage
- Reliable clamp for hard hoses
Professional Installation Requirements
- Installation by a qualified technician or professional recommended to ensure proper tightening torque and secure hose connection.
Applications
- Suitable for securing hoses with high hardness levels
- Ideal for hoses with metal or plastic inserts
- Used in automotive, industrial, and mechanical hose connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant materials reduce hazardous substances
- Durable zinc-plated steel extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth W1 Joint Bolt Clamp 5 PCS is available for immediate purchase, ideal for industrial and automotive hose securing applications.
