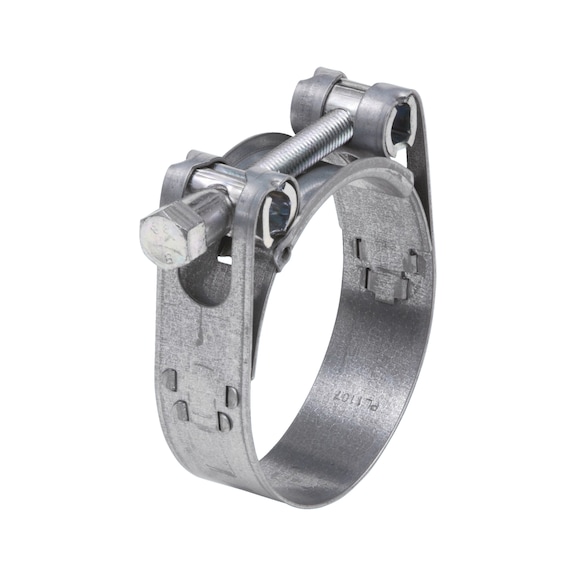

W1 Joint Bolt Clamp | Zinc Plated Steel | High Tightening Force | 5 PCS | by Wurth
The W1 Joint Bolt Clamp is designed for securing hoses with high hardness or metal/plastic inserts, making it ideal for industrial and automotive applications. With a zinc plated steel construction, it offers excellent corrosion resistance and features rounded edges to prevent hose damage. This pack of 5 clamps ensures reliable connections with a high tightening force, perfect for general purpose hose clamping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material of clamp band: Steel
- Surface of the clamp band: Zinc plated
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Min./max. grip range: 51-55 mm
- Width of band: 20 mm
- Width across flats: 10 mm
- Tightening torque: 10 Nm
- Standards: DIN 3017
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 55mm x 20mm
- Weight: 0.1 kg
Key Features
- Extremely high tightening force for secure connections
- Suitable for hard hoses and hoses with metal or plastic inserts
- Rounded edges and hose bridge to prevent injury and hose damage
- Zinc plated steel clamp band and screw for corrosion resistance
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper tightening torque and secure hose connection.
Applications
- Securing hoses with high hardness or metal/plastic inserts
- Industrial and automotive hose connections
- General purpose hose clamping requiring high tightening force
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant materials reduce hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth W1 Joint Bolt Clamp 5 PCS is available for immediate purchase, ideal for industrial, automotive, and general hose clamping applications.
