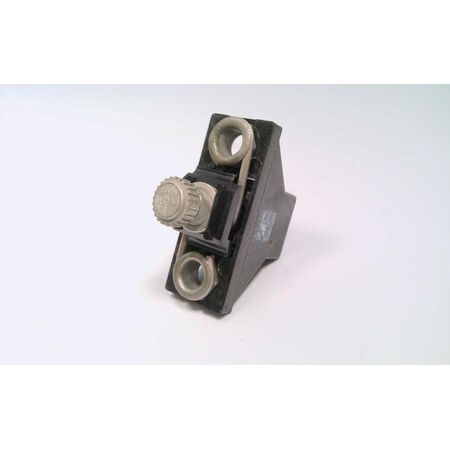

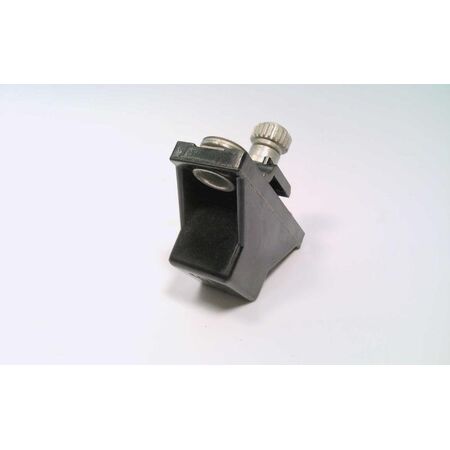

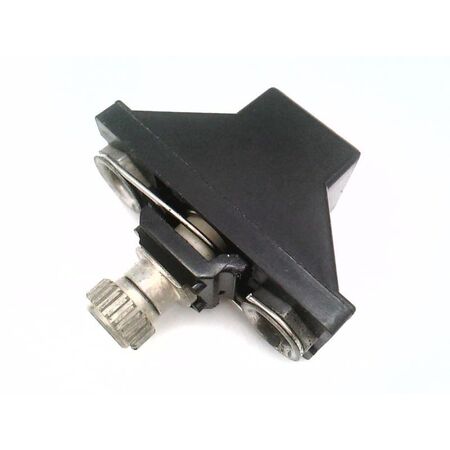

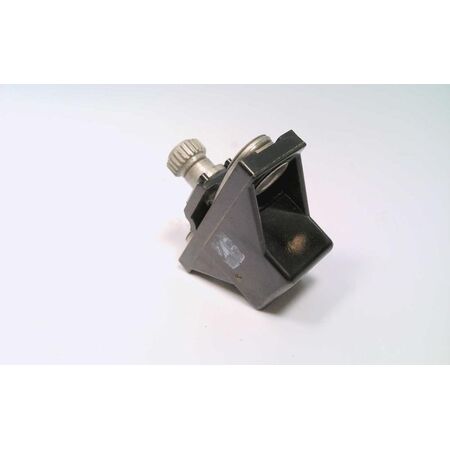

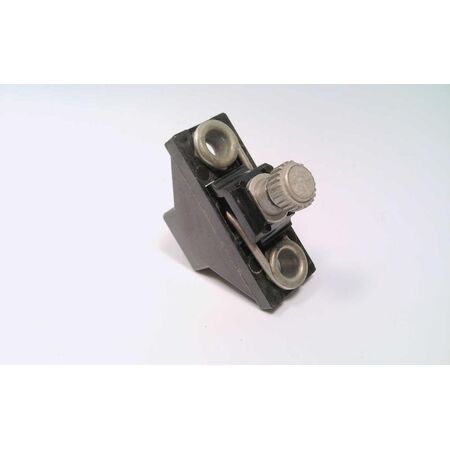

W45 Heater Element for W Series Overload Relay | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The W45 Heater Element is designed for W Series overload relays, featuring a eutectic alloy construction and Class 20 protection rating. Ideal for industrial motor protection, it supports current ratings of 5.36 Amp at Size 00-0 and 5.18 Amp at Size 1, ensuring reliable performance in overload relay systems. Professional installation is recommended for optimal integration with Bulletin 500 line starters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Current Ratings: 5.36 Amp @ Size 00-0, 5.18 Amp @ Size 1
- Protection Class: Class 20
- Compatible with Bulletin 500 line starters
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with W Series overload relays
- Class 20 protection rating
- Supports 5.36 Amp at Size 00-0 and 5.18 Amp at Size 1
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper integration with overload relay systems and compliance with electrical standards.
Applications
- Industrial motor protection
- Use with Bulletin 500 line starters
- Overload relay systems requiring Class 20 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor protection to reduce energy waste and equipment damage
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
Available for immediate purchase, ideal for industrial motor protection and overload relay maintenance.
