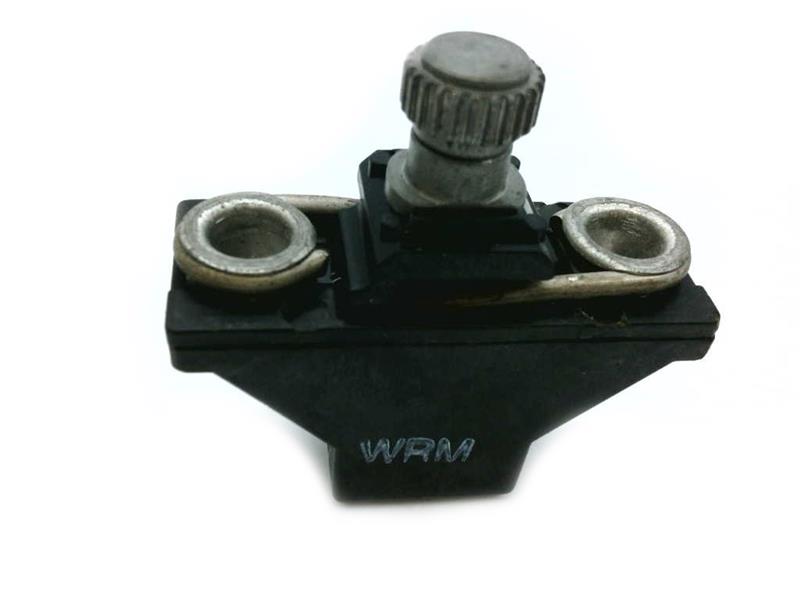

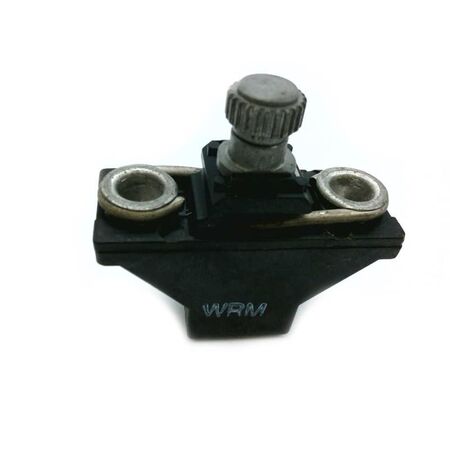

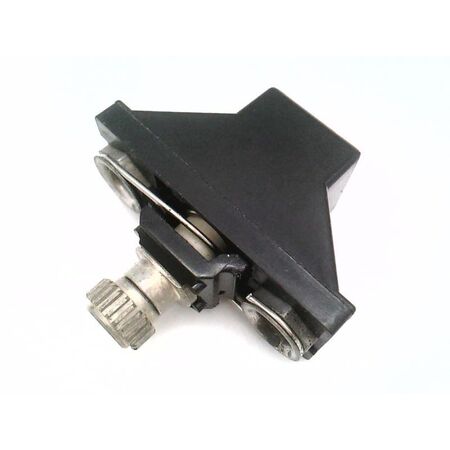

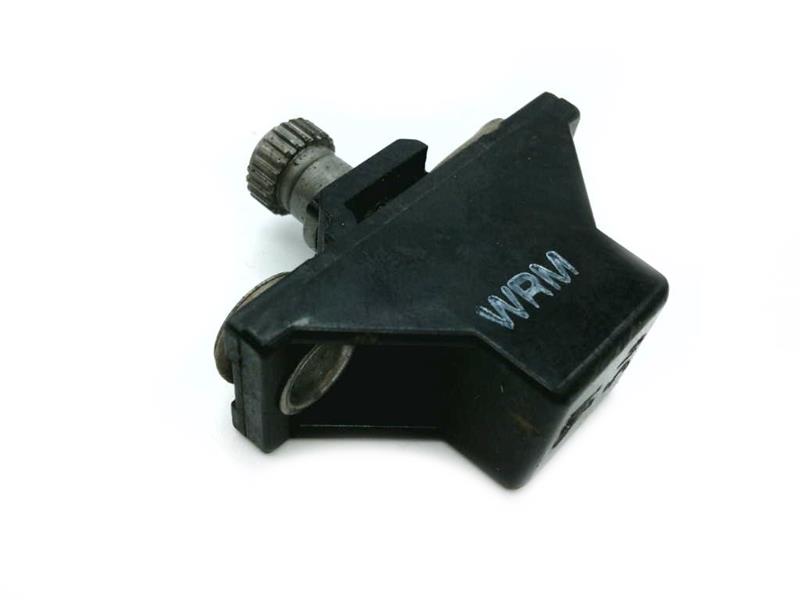

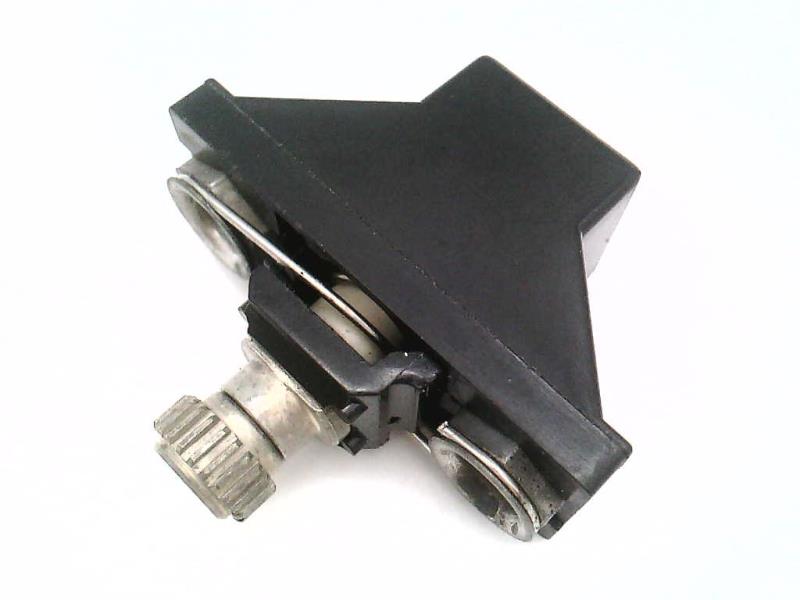

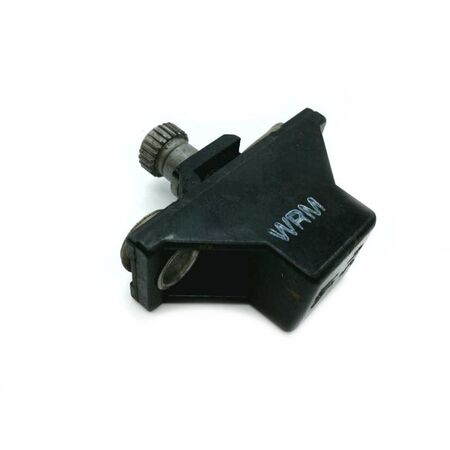

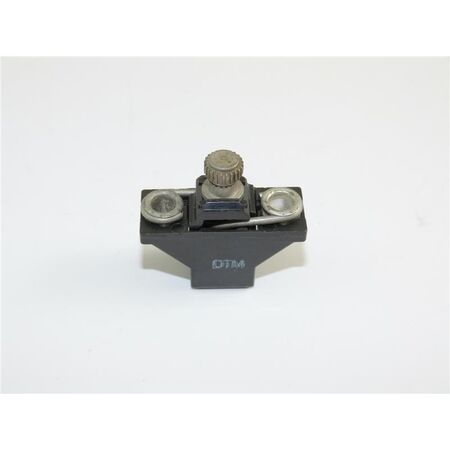

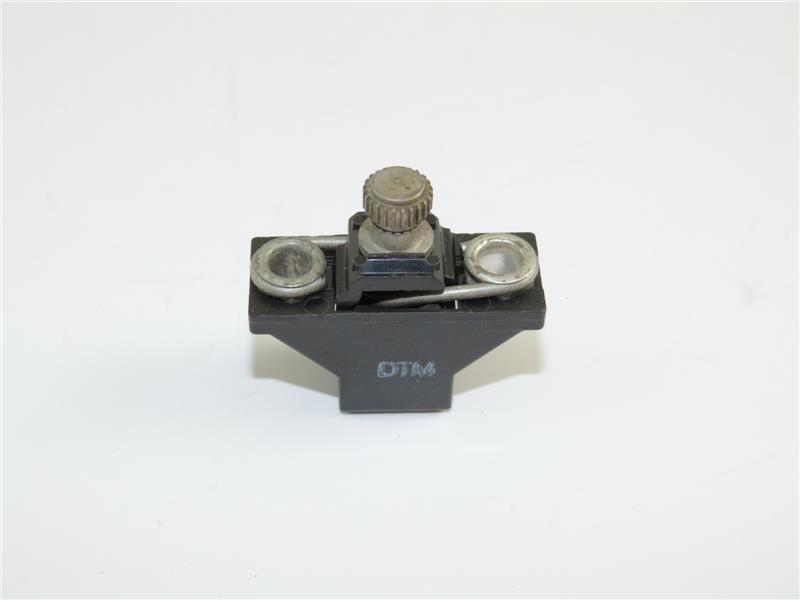

Product Name/Title: Allen-Bradley W54 Heater Element for W Series Overload Relay
Brand: Allen-Bradley
SKU: W54
Alternatively Known As: W54 Heater Element, Allen-Bradley Overload Relay Heater, W Series Heater Element
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Protection Class: 20
- Current Ratings: 12.2 Amp (Size 00-0), 12.5 Amp (Size 1), 12.6 Amp (Size 2)
- Compatible with Bulletin 500 line starters
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection
- Rated current: 12.2 Amp @ Size 00-0, 12.5 Amp @ Size 1, 12.6 Amp @ Size 2
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems and compliance with electrical standards.
Applications
- Industrial motor protection
- Electrical control panels
- Automation systems requiring overload relay heating elements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment replacement.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W54 Heater Element is available for immediate purchase, ideal for industrial and automation applications requiring reliable overload protection.
