Wall Box for 12-Fibre SC Duplex | IP65 Rated | Lockable Design & Robust ABS Enclosure | Cabac

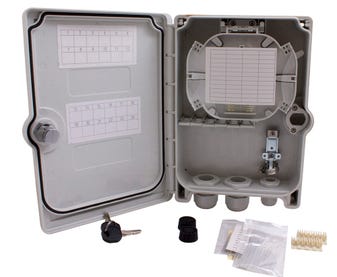

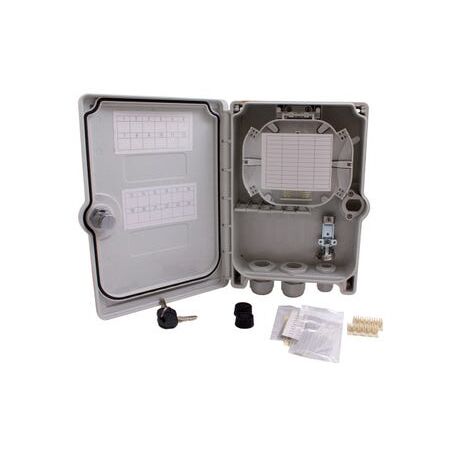

The Cabac Wall Box for 12-24 Fibre SC Duplex is an IP65 rated lockable distribution box designed for indoor and outdoor fibre optic cable termination, offering flexible adaptor options and robust protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wall Box for12-Fibre SC Duplex IP Rated
Brand: Cabac
SKU: WB-12-SCD-IP
Alternatively Known As: Fibre Optic Wall Box, Fibre Distribution Box, SC Duplex Fibre Enclosure, IP65 Fibre Termination Box
Technical Specifications
- Capacity: Supports 12-24 fibres (250 µm or 900 µm)
- Material: Robust ABS enclosure
- Ingress Protection: IP65 rated
- Adaptor Compatibility: Accepts SC Duplex and LC Quad through adaptors
- Cable Types: Loose tube, tight buffered, and pre-terminated cables
- Features: Integrated strength member tie positions and bend radius protection
- Door: Lockable and removable front door for easy access
- Compliance: ROHS, REACH & SvHC compliant
- Dimensions (H x L x W): 275mm x 65mm x 197mm
- Weight: 1.5 kg
Key Features
- Up to 24 fibres (250 µm only / 12 fibres 900 µm)
- Removable splice tray for easy installation
- IP65 rated for protection against dust and water
- Accepts loose tube, tight buffered and pre-terminated cables
- Integrated bend radius protection
- Lockable door for added security
- Removable door for ease of installation
- ROHS, REACH & SvHC compliant
- Supplied with sufficient heatshrink splice protectors
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper fibre termination and compliance with safety standards.
Applications
- Data centres
- Premise installations
- Telecommunication networks
- Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
- Data communication and telecommunication networks
- Indoor and outdoor applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- ROHS, REACH & SvHC compliant ensuring reduced hazardous substances
- Durable ABS enclosure extends product life reducing waste
- IP65 rating protects internal components from environmental damage, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Wall Box for 12-24 Fibre SC Duplex IP65 Rated is available now for immediate purchase. Ideal for data centres, telecommunication networks, and indoor/outdoor fibre optic installations.
