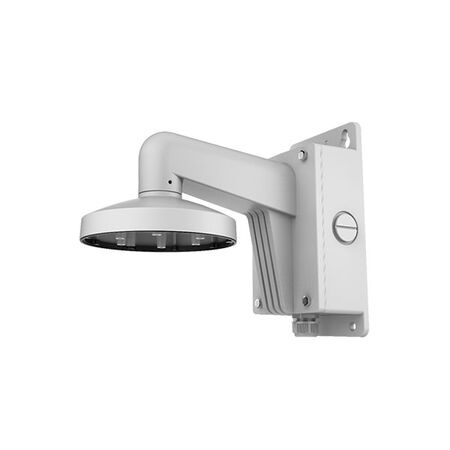

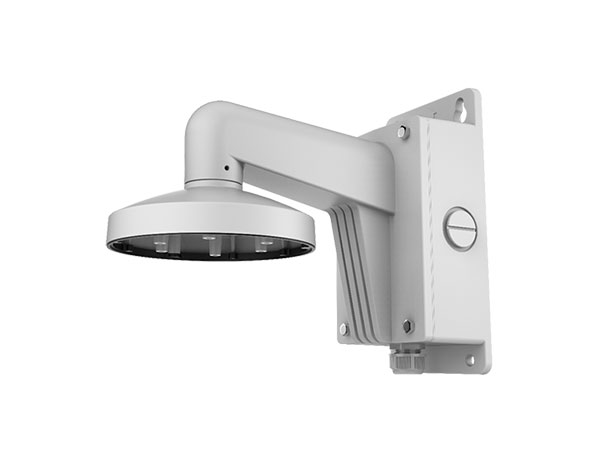

Wall Bracket to Suit DS-2CD27xx Cameras Hikvision
Hikvision wall bracket to Suit DS-2CD27xx cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1473ZJ-155 Wall Mount, CCTV Dome Camera Wall Bracket, Hikvision 2CD27xx Camera Bracket
Technical Specifications
- Model: DS-1473ZJ-155
- Mounting Type: Wall mount for dome cameras
- Compatibility: Hikvision DS-2CD27xx camera series, including compatible DS-2CD27x5 models
- Material: Aluminium alloy
- Colour: Hikvision white
- Maximum Load Capacity: 3 kg
- Design: Waterproof mounting design
- Installation Surface: Flat wall required
- Wall Support Requirement: Wall should support at least three times the combined camera and bracket weight
- Dimensions (H x L x W): 183.5mm x 240mm x 155mm
- Weight: 0.65 kg
Key Features
- Designed for compatible Hikvision DS-2CD27xx dome cameras
- Aluminium alloy construction with anti-corrosion surface treatment
- Waterproof design for suitable indoor and outdoor installations
- Integrated cable outlet for a neater installation
- Supports camera loads up to 3 kg
- Supplied in Hikvision white to match compatible cameras
Professional Installation Requirements
- Installation should be completed by a competent CCTV or security installer. Mount the bracket on a flat, structurally suitable wall, confirm that the wall supports at least three times the combined camera and bracket weight, and follow the camera manufacturer's installation instructions.
Applications
- Wall mounting Hikvision DS-2CD27xx dome cameras
- Indoor CCTV and security camera installations
- Outdoor surveillance installations where the camera and cable entry are suitably weather protected
- Commercial, industrial and residential security systems
Standards & Compliance
- AS/NZS 62676.4:2020 may apply to the selection, planning, installation, commissioning, maintenance and testing of the overall CCTV system; no standalone Australian/NZ compliance claim was identified for the passive bracket itself
Environmental Benefits
- Aluminium alloy construction is durable and widely recyclable at end of service life
- Long-lasting metal construction can reduce replacement frequency and associated material waste
- Passive accessory requires no electrical power during operation
Warranty Information
Warranty is subject to Hikvision Australia authorised-channel terms. No accessory-specific warranty duration was stated in the located manufacturer documentation; confirm the applicable term with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
