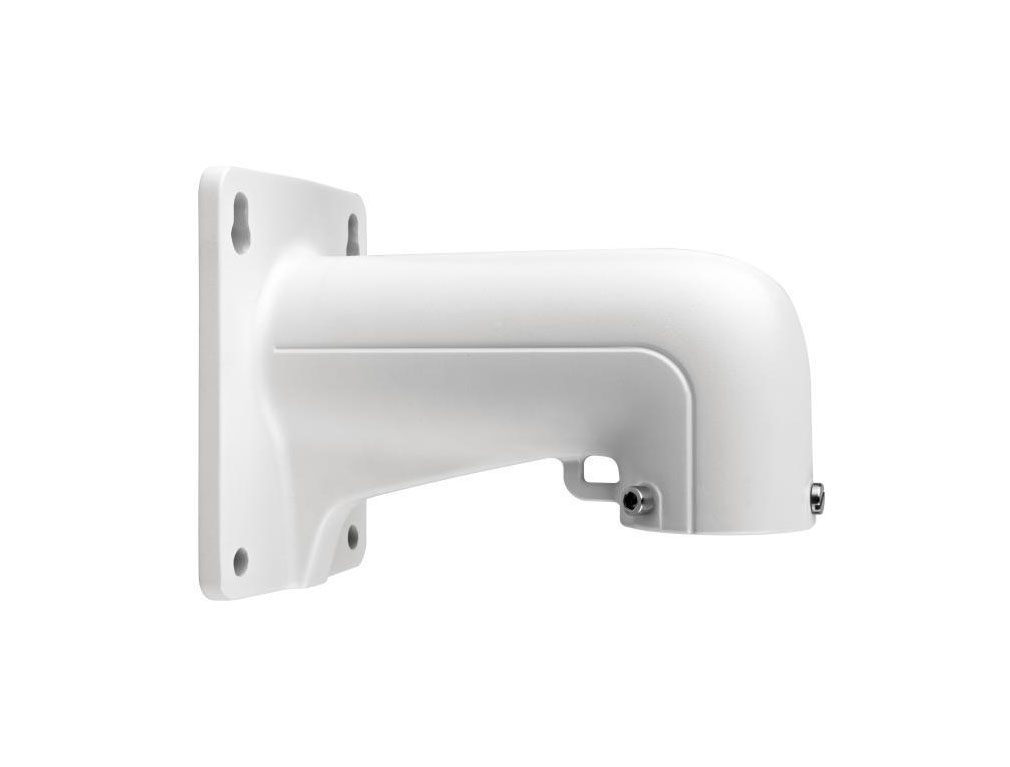

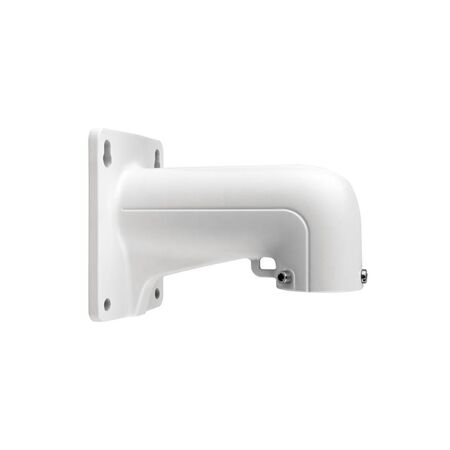

Wall Bracket to Suit TandemVu PTZ Camera Hikvision
Hikvision wall bracket to Suit TandemVu PTZ cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision TandemVu PTZ wall bracket, Hikvision short arm PTZ wall mount, DS-1618ZJ wall mount
Technical Specifications
- Model: DS-1618ZJ
- Bracket Type: Short arm wall mount
- Application: Speed dome and compatible TandemVu PTZ cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Maximum Load: 30 kg
- Installation: Flat wall mounting
- Safety Feature: Integrated safety rope and hook
- Dimensions (H x L x W): 189mm x 145mm x 110mm
- Weight: 0.55 kg
Key Features
- Designed for compatible Hikvision TandemVu PTZ and speed dome cameras
- Compact short-arm wall-mount design
- Aluminium alloy construction for indoor and outdoor use
- Surface spray treatment for improved durability
- Integrated safety rope supports safer camera installation
- Cable routing through the bracket arm
- Suitable for wall installations where a pendant or pole mount is not required
Professional Installation Requirements
- Installation should be performed by a competent CCTV or security installer. Mount the bracket to a suitable flat wall using appropriate fixings, confirm the wall can support at least three times the combined camera and bracket weight, and verify compatibility with the exact camera model before installation.
Applications
- Wall mounting compatible Hikvision TandemVu PTZ cameras
- Commercial and residential CCTV installations
- Building façades, car parks and perimeter security systems
- Indoor and outdoor security camera installations
- Replacement or retrofit mounting for compatible Hikvision speed dome cameras
Environmental Benefits
- Aluminium alloy construction is recyclable at end of service life
- Durable construction can extend product service life and reduce replacement waste
- Passive mounting accessory requires no electrical power during operation
Warranty Information
Hikvision ANZ warranty coverage for accessories is subject to the product, sales channel and applicable manufacturer terms. Confirm the specific warranty period with the authorised Australian distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to regional stock levels.
