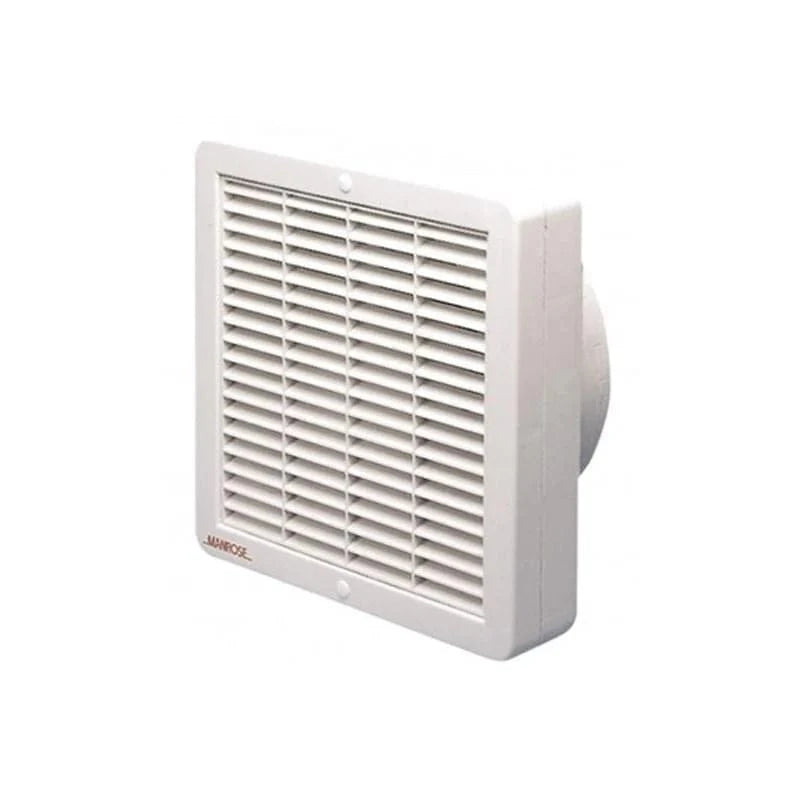

Wall Ceiling Commercial Fan 300mm 306L/s White Ventair
Ventair 300mm wall or ceiling mounted commercial fan, standard model with standard switch. Rated 306 l/s, 1100 m3/h for strong extraction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair FAN2040, XFS300S, 300mm Commercial Exhaust Fan, Axial Commercial Ventilation Fan
Technical Specifications
- Model: FAN2040
- Fan Type: Axial exhaust fan
- Air Delivery: 306 L/s, 1,100 m³/h free-air performance
- Motor Power: 82 W
- Power Supply: 220-240 V AC, 50 Hz
- Noise Level: 60 dB(A)
- Duct Size: 300 mm
- Cut-Out Size: 310 mm nominal diameter
- Switching: Standard remote-switch operation; switch not supplied
- Ingress Protection: IPX4
- Motor Construction: Ball-bearing motor
- Motor Housing: Die-cast aluminium
- Impeller and Outer Rotor: PBT plastic
- Maximum Operating Temperature: 50°C
- Specific Fan Power: 0.27 W/L/s
- Colour: White
- Dimensions (H x L x W): 156mm x 362mm x 362mm
- Weight: 4 kg
Key Features
- Suitable for wall or ceiling mounting
- High extraction capacity for commercial ventilation
- Ball-bearing motor designed to support extended service life
- Standard model for connection to a remote switch
- IPX4-rated construction for protection against water splashes
- Efficient axial fan design
- Square white fascia
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with the installation instructions and AS/NZS 3000 wiring requirements. A suitable remote switch is required and is not supplied.
Applications
- Commercial bathrooms and amenities
- Restaurants, cafés, pubs and hotels
- Retail and office premises
- Workshops and utility areas
- Industrial and commercial ventilation systems
- Wall or ceiling extraction requiring a 300 mm duct connection
Standards & Compliance
- Applicable fan safety requirements: AS/NZS 60335.2.80:2025
- Electrical installation should comply with AS/NZS 3000:2018 and the latest applicable edition
Environmental Benefits
- Air delivery of approximately 306 L/s for a specific fan power of 0.27 W/L/s
- Ball-bearing motor construction can extend service life and reduce replacement waste
- Aluminium motor housing and plastic components may be recyclable through suitable local facilities
- Ventilation can help manage moisture, odours and mould in appropriate building applications
Warranty Information
Five-year manufacturer warranty is listed for the product. Ventair warranty terms limit products used in commercial settings to a maximum one-year warranty, subject to the applicable warranty conditions.
Available Now
Available through authorised Ventair distributors in Australia.
