Wall Mount and Junction Box to Suit SpeedDome Hikvision

BRAND: Ness
SKU: 114-042
$154.70 List price: $206.30
+ −
30 Days Return Electricians Unlock Trade Access

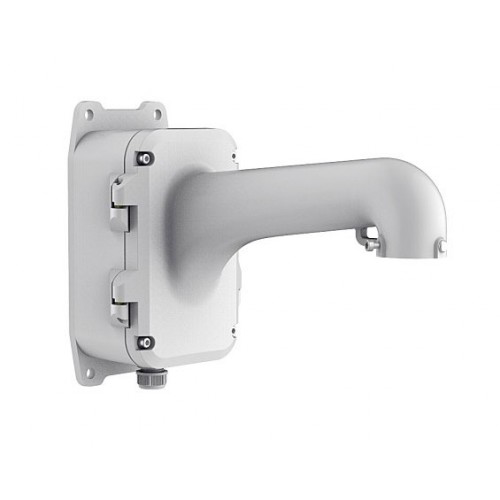

Hikvision wall mount with junction box features wall mounting for SpeedDome cameras. Ideal for CCTV and security installs.

Alternatively Known As: Hikvision PTZ wall mount, SpeedDome wall bracket, PTZ junction box wall mount

Technical Specifications
  • Model: JBPW-L
  • Application: Wall mounting for 5-inch and larger Hikvision outdoor PTZ SpeedDome cameras
  • Material: Aluminium alloy with surface spray treatment
  • Colour: Hikvision white
  • Maximum Load Capacity: 10 kg
  • Cable Entry: G3/4 bottom outlet and back outlet
  • Installation Environment: Indoor and outdoor
  • Compatible Corner Mount: Hikvision CMP-JB
  • Dimensions (H x L x W): 170.7mm x 395.5mm x 281.2mm
  • Weight: 2.15 kg
Key Features
  • Integrated junction box for protected cable management
  • Suitable for 5-inch and larger Hikvision outdoor PTZ SpeedDome cameras
  • Supports both bottom and rear cable outlets
  • Aluminium alloy construction with surface spray treatment
  • Safety-focused mounting design for outdoor PTZ installations
  • Compatible with the Hikvision CMP-JB corner mount
Applications
  • Wall mounting Hikvision SpeedDome PTZ cameras
  • Outdoor CCTV and security surveillance installations
  • Commercial, industrial and infrastructure security systems
  • Installations requiring concealed and protected camera cabling
Environmental Benefits
  • Aluminium alloy construction is durable and recyclable at end of service life
  • Long service life can reduce replacement frequency and installation waste
  • Integrated cable protection helps protect connected CCTV equipment from environmental exposure
Warranty Information

Hikvision Australia lists brackets as consumable accessories with a 12-month warranty from shipment, subject to the applicable Hikvision warranty terms and authorised distribution conditions.

Available Now

Available through Hikvision and authorised Australian security and CCTV distributors.
