Trade Discount 25%

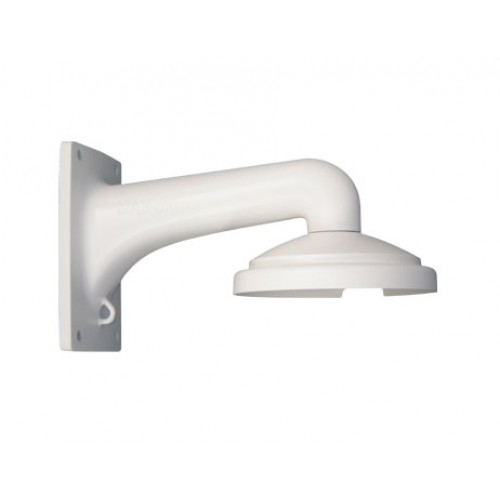

Wall Mount Bracket Aluminium Alloy Hikvision
Hikvision wall mount bracket features aluminium alloy construction. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision WML Wall Mount, Hikvision DS-1273ZJ-140B, CCTV Camera Wall Bracket
Technical Specifications
- Model: WML
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Application: Dome and turret camera wall mounting
- Junction Box: Integrated for concealed cable connections
- Environmental Use: Indoor and outdoor
- Maximum Load Capacity: 50 kg
- Installation Surface: Flat wall capable of supporting at least three times the combined camera and bracket weight
- Dimensions (H x L x W): 242.9mm x 244.9mm x 123.1mm
- Weight: 1.428 kg
Key Features
- Aluminium alloy construction for strength and corrosion resistance
- Integrated junction box for concealed cable entry and connections
- Surface spray treatment with weather-resistant design
- Suitable for compatible Hikvision dome and turret cameras
- Designed for installation on a flat wall
- Supports camera mounting with a maximum stated load of 50 kg
Professional Installation Requirements
- No special licensed trade installation is required for the passive bracket. Installation should be completed by a suitably qualified CCTV installer using compatible Hikvision camera hardware, appropriate wall fixings and the manufacturer's mounting instructions.
Applications
- Indoor CCTV camera installations
- Outdoor surveillance camera installations
- Wall mounting compatible Hikvision dome cameras
- Wall mounting compatible Hikvision turret cameras
- Security system installations requiring concealed cable connections
Standards & Compliance
- AS/NZS 62676.1.1:2020 is applicable to the associated video surveillance system; this passive mounting bracket is not separately identified as compliant with that standard.
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Durable construction and surface treatment can extend product service life and reduce replacement waste
- Enables secure installation of CCTV equipment, supporting long-term system operation
Warranty Information
Hikvision Australia documentation lists brackets as consumable accessories with a 12-month warranty from the shipment date, subject to the applicable sales terms.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
