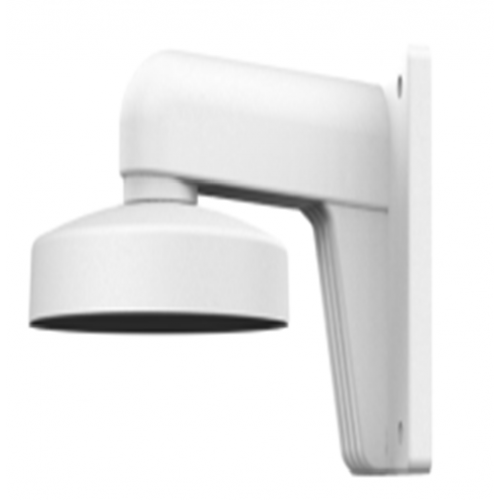

Wall Mount Bracket DS-1272ZJ-110 to Suit Dome Camera Hikvision

BRAND: Ness
SKU: 104-781
$39.50 List price: $52.70
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision wall mount bracket for dome cameras features a fixed wall fixing arm. Ideal for CCTV installs mounting dome cameras to walls.

Alternatively Known As: Hikvision Dome Camera Wall Mount, CCTV Dome Camera Mounting Bracket, DS-1272ZJ-110 Wall Bracket

Technical Specifications
  • Model: DS-1272ZJ-110
  • Application: Wall mounting bracket for dome cameras
  • Material: Aluminium alloy with surface spray treatment
  • Colour: Hikvision white
  • Maximum Load Capacity: 4.5 kg
  • Mounting Surface: Flat wall
  • Cable Management: Integrated cable entrance hole and concealed routing
  • Installation Requirement: Wall should support more than three times the combined camera and bracket weight
  • Dimensions (H x L x W): 169mm x 122mm x 120mm
  • Weight: 0.48 kg
Key Features
  • Designed for Hikvision dome and mini-dome cameras
  • Fixed wall mounting arm for CCTV installations
  • Aluminium alloy construction
  • Hikvision white finish for matching compatible cameras
  • Integrated cable entrance helps conceal wiring
  • Surface treatment supports use in indoor and suitable outdoor installations
  • Maximum load capacity of 4.5 kg
Applications
  • Wall mounting Hikvision dome cameras
  • Indoor CCTV installations
  • Outdoor CCTV installations where the mounting surface and camera system are suitably weather protected
  • Commercial, industrial and residential security camera systems
Environmental Benefits
  • Aluminium alloy construction is durable and widely recyclable at end of service life
  • Long service life can reduce replacement frequency and associated material waste
  • Supports installation of security cameras without requiring a separate support structure
Warranty Information

Hikvision warranty applies to eligible genuine products purchased through authorised Australian distribution channels. No product-specific warranty term for the DS-1272ZJ-110 bracket was identified; confirm the applicable term with the authorised distributor.

Available Now

Available through Hikvision and authorised Australian security-equipment distributors.
