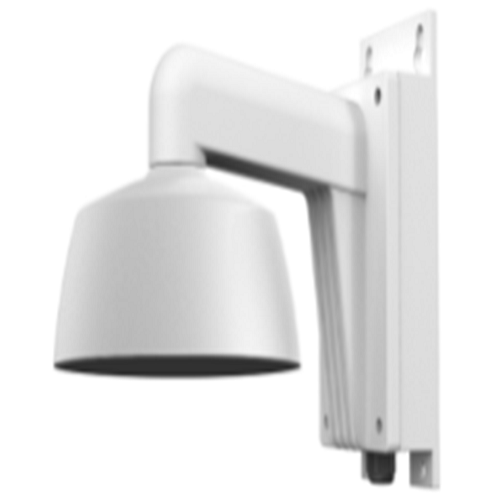

Wall Mount Bracket DS-1273ZJ-160B to Suit Dome Camera Hikvision
Hikvision wall mount bracket for dome cameras features a fixed wall fixing arm. Ideal for CCTV installs mounting dome cameras to walls.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Dome Camera Wall Mount, CCTV Dome Camera Bracket, Wall Mount Bracket with Junction Box
Technical Specifications
- Bracket Type: Wall mounting bracket with junction box
- Application: Dome camera wall mounting
- Material: Aluminium alloy with surface spray treatment
- Finish: Hikvision white
- Maximum Load: 4.5 kg
- Cable Management: Integrated cable entry hole with waterproof design
- Installation Surface: Flat wall capable of supporting more than three times the combined camera and bracket weight
- Compatible Camera Series: Selected Hikvision DS-2CD72xx and DS-2CD43xx dome cameras
- Dimensions (H x L x W): 303mm x 243mm x 160mm
- Weight: 1.63 kg
Key Features
- Fixed wall-mounting arm for dome cameras
- Integrated junction box for cable termination and protection
- Aluminium alloy construction
- Surface spray treatment for improved durability
- Cable entry hole supports concealed and protected wiring
- Water-resistant design around the cable entry and junction box
- Maximum rated load of 4.5 kg
Professional Installation Requirements
- Installation should be completed by a competent CCTV installer or suitably skilled person. Fix the bracket to a flat, structurally sound wall using suitable fasteners, and verify that the wall supports more than three times the combined camera and bracket weight.
Applications
- Commercial CCTV installations
- Residential security camera installations
- Wall mounting compatible Hikvision dome cameras
- Outdoor or semi-exposed camera installations where protected cable entry is required
Environmental Benefits
- Aluminium alloy construction is recyclable at end of service life
- Durable construction can extend service life and reduce replacement waste
- Junction box design helps protect camera cabling and may reduce maintenance-related replacement waste
Warranty Information
A 3-year Australian warranty is advertised by Australian Hikvision distributors for this product; warranty eligibility depends on purchase through an authorised distribution channel and the applicable sales terms.
Available Now
Available through Hikvision and authorised Australian CCTV and security-equipment distributors.
