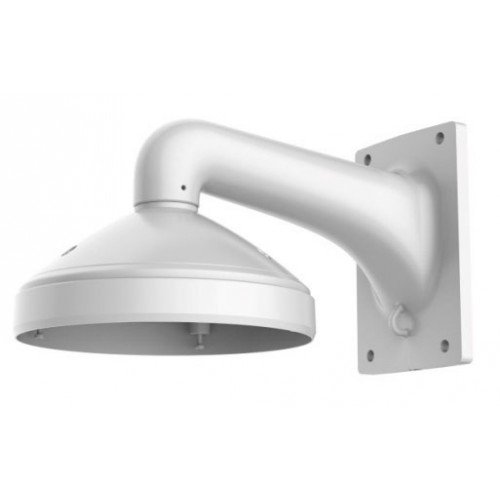

Wall Mount Bracket DS-21605ZJ-DM30 Hikvision
Hikvision wall mount bracket is the matching bracket for SKU 104-808. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1605ZJ-DM30, DS-21605ZJ-DM30, Dome Camera Wall Mount, CCTV Wall Bracket
Technical Specifications
- Compatible Camera: Hikvision DS-2CD6986F-H and selected compatible dome cameras
- Material: Aluminium alloy
- Finish: Hikvision white with surface spray treatment
- Maximum Load Capacity: 5 kg
- Installation Surface: Flat wall surface required
- Outdoor Use: Waterproof rubber required for outdoor applications
- Dimensions (H x L x W): 333.6mm x 205.6mm x 183.3mm
- Weight: 1.62 kg
Key Features
- Purpose-built wall mount for compatible Hikvision dome cameras
- Aluminium alloy construction with surface spray treatment
- Waterproof design for suitable indoor and outdoor installations
- Supports camera loads up to 5 kg
- Matching bracket for the camera associated with SKU 104-808
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV installer. Mount the bracket to a flat, structurally sound surface capable of supporting at least three times the combined weight of the camera and bracket. Follow Hikvision installation instructions and use the supplied waterproof rubber for outdoor applications.
Applications
- Wall mounting Hikvision dome cameras
- Indoor CCTV installations
- Outdoor CCTV installations where suitable weather sealing is provided
- Commercial, industrial and residential security systems
Environmental Benefits
- Aluminium alloy construction is durable and widely recyclable at end of service life
- Robust construction and weather-resistant design can extend service life and reduce replacement waste
- Passive mounting accessory requires no electrical power during operation
Warranty Information
Warranty is subject to Hikvision Australia and authorised distributor terms. Australian Hikvision resellers commonly provide a three-year warranty on eligible products; confirm the applicable term for this mounting accessory at purchase.
Available Now
Available through Hikvision and authorised Australian CCTV and security-equipment distributors.
