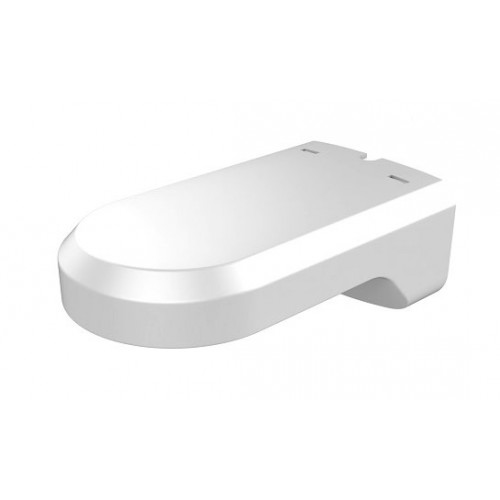

Wall Mount Bracket Hikvision
Hikvision wall mount bracket features wall mounting for CCTV cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Surveillance Camera Wall Bracket, CCTV Camera Mounting Bracket, Security Camera Wall Mount
Technical Specifications
- Product Type: CCTV camera wall mount bracket
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Compatibility: Hikvision box, bullet and zoom cameras; compatibility depends on camera model
- Adjustment: Pan 360°, tilt -45° to 45°
- Maximum Load: Up to 6 kg for the DS-1293ZJ reference design
- Installation Surface: Flat wall required
- Cable Management: Integrated outlet hole
- Dimensions (H x L x W): 88mm x 297.3mm x 116.6mm
- Weight: 0.473 kg
Key Features
- Designed for wall mounting Hikvision CCTV cameras
- Suitable for indoor and outdoor security installations
- Rotatable camera mounting plate for positioning flexibility
- Adjustable pan and tilt alignment
- Aluminium alloy construction with protective surface treatment
- Integrated cable outlet for neater installation
- Wall structure should support more than three times the combined camera and bracket weight
Applications
- Residential CCTV camera installations
- Commercial and retail security systems
- Industrial and warehouse surveillance
- Outdoor security camera mounting
- Wall mounting of compatible Hikvision box, bullet and zoom cameras
Standards & Compliance
- Suitable for use within CCTV installations designed and installed in accordance with AS/NZS 62676.4:2020; no bracket-specific Australian certification identified
Environmental Benefits
- Aluminium alloy components are recyclable at end of service life
- Reusable mounting hardware can support longer camera system service life and reduce replacement waste
- Durable construction may reduce the need for frequent bracket replacement
Warranty Information
Hikvision warranty coverage depends on the product series, purchase channel and authorised Australian distributor. No bracket-specific warranty term was identified; confirm coverage at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to compatible camera model and distributor stock.
