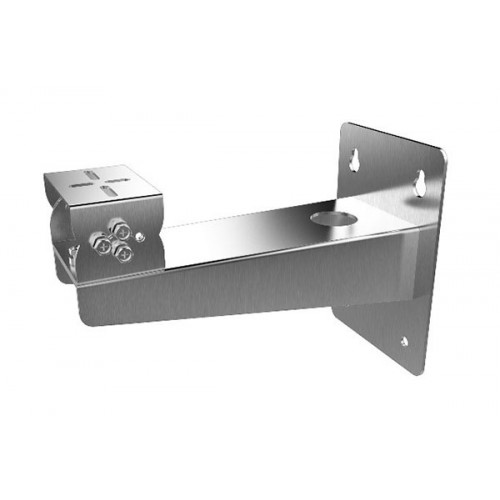

Wall Mount Bracket Stainless Steel Hikvision
Hikvision wall mount bracket features stainless steel construction. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision stainless steel CCTV wall bracket, WMS-SS camera wall mount, anti-corrosion camera bracket
Technical Specifications
- Model: WMS-SS
- Compatible Camera: Hikvision DS-2CD6626DS-IZHS stainless steel camera
- Material: Stainless steel
- Finish: Unpainted stainless steel
- Design: Anti-corrosion construction for adverse environments
- Clamp Load Capacity: 5 kg
- Installation Surface: Flat wall required
- Outdoor Installation: Waterproof rubber required
- Dimensions (H x L x W): 309.9mm x 202mm x 175.8mm
- Weight: 3.3 kg
Key Features
- Stainless steel construction
- Anti-corrosion design for harsh or adverse environments
- Designed for Hikvision DS-2CD6626DS-IZHS stainless steel cameras
- Integrated cap facilitates camera wiring
- Suitable for wall-mounted CCTV installations
- Requires a wall capable of supporting more than three times the combined camera and bracket weight
Professional Installation Requirements
- No licensed electrical installation is required for the passive bracket. Install on a suitable flat wall using appropriate fixings; the wall should support more than three times the combined camera and bracket weight. Use waterproof rubber for outdoor applications.
Applications
- Wall mounting Hikvision DS-2CD6626DS-IZHS stainless steel cameras
- Outdoor CCTV installations in corrosive or demanding environments
- Commercial, industrial and infrastructure security camera installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 is relevant to the overall CCTV system installation; no separate bracket-specific Australian Standard compliance claim was identified.
Environmental Benefits
- Stainless steel is durable and recyclable at end of service life
- Anti-corrosion construction can extend service life and reduce replacement waste
- Long service life supports reduced material consumption over the installation lifecycle
Warranty Information
Hikvision's Asia-Pacific RMA policy lists a default 24-month warranty for lenses and accessories, subject to the applicable product terms, proof of purchase and authorised distribution channel.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
