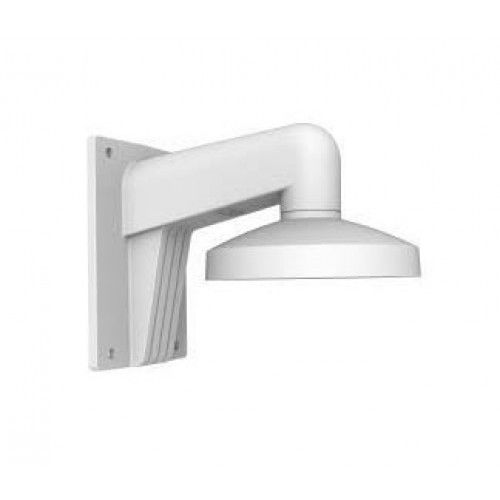

Wall Mount Bracket White DS-1473ZJ-155 Hikvision
Hikvision wall mount bracket features a white finish. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CCTV Dome Camera Wall Bracket, Hikvision Dome Camera Mount, Aluminium CCTV Wall Mount
Technical Specifications
- Model: DS-1473ZJ-155
- Application: Wall mounting for compatible dome cameras
- Material: Aluminium alloy
- Finish: Hikvision white anti-corrosion surface spray treatment
- Maximum Load Capacity: 3 kg
- Installation Surface: Flat wall surface
- Mounting Requirement: Wall must support at least three times the combined camera and bracket weight
- Design: Waterproof construction
- Bracket Fixing: Four 8.5 mm diameter mounting holes
- Dimensions (H x L x W): 240mm x 183.5mm x 155mm
- Weight: 0.65 kg
Key Features
- Designed for compatible Hikvision dome cameras
- Aluminium alloy construction for low weight and durability
- White finish to match Hikvision camera installations
- Anti-corrosion surface treatment for improved service life
- Waterproof design for suitable outdoor installations
- Installation cap facilitates camera mounting
- Supports loads up to 3 kg when correctly installed
Professional Installation Requirements
- Install on a suitable flat surface using appropriate fixings. The supporting wall should withstand at least three times the combined weight of the camera and bracket. CCTV installation may be subject to state or territory licensing requirements in Australia.
Applications
- Wall mounting Hikvision dome cameras
- Outdoor CCTV and security camera installations
- Commercial, industrial and residential surveillance systems
- Security camera upgrades and replacement installations
Environmental Benefits
- Aluminium alloy is durable and widely recyclable at end of service life
- Anti-corrosion treatment can extend product lifespan and reduce replacement waste
- Reusable mechanical mounting solution without electronic components or batteries
Warranty Information
Hikvision Australia warranty terms apply through authorised distribution channels. Hikvision documentation lists brackets and other consumable accessories as covered for 12 months from shipment, subject to the applicable sales agreement and warranty conditions.
Available Now
Available through Hikvision and authorised Australian security equipment distributors.
