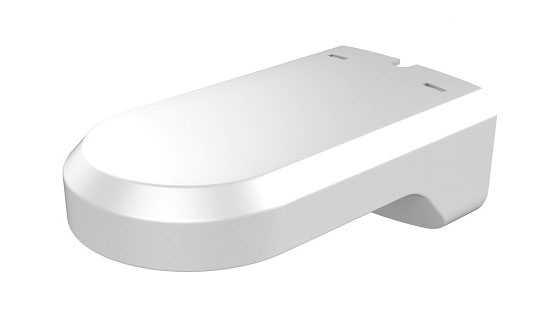

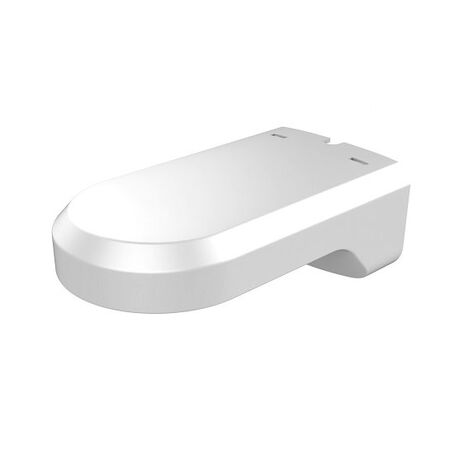

Wall Mount Bracket White to Suit PTZ Camera Hikvision
Hikvision wall mount bracket for PTZ cameras features a white finish. Ideal for CCTV installs with PTZ cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PTZ Camera Wall Mount, CCTV PTZ Bracket, Hikvision PTZ Mounting Bracket, DS-1294ZJ-PT
Technical Specifications
- Model: DS-1294ZJ-PT
- Material: Plastic and steel
- Colour: Hikvision white
- Maximum Load Capacity: 3 kg
- Installation Type: Wall mount
- Usage: Indoor and outdoor environments
- Cable Management: Integrated cable hole design
- Dimensions (H x L x W): 80mm x 223.5mm x 125.8mm
- Weight: 0.48 kg
Key Features
- Designed for compatible Hikvision PTZ cameras
- White finish to match Hikvision camera housings
- Plastic and steel construction with surface treatment
- Suitable for indoor and outdoor installations
- Integrated cable hole facilitates neat installation
- Wall must support at least three times the combined camera and bracket weight
Applications
- Wall mounting Hikvision PTZ security cameras
- Indoor CCTV surveillance installations
- Outdoor CCTV surveillance installations
- Commercial, industrial and residential security systems
Standards & Compliance
- AS/NZS 62676.4:2020 is relevant to the selection, planning, installation, commissioning, maintenance and testing of CCTV systems; the bracket itself is not separately declared as compliant.
Environmental Benefits
- Steel components are recyclable at end of service life
- Durable construction can extend service life and reduce replacement waste
- Supports long-term maintenance of CCTV infrastructure without integrated electronic components
Warranty Information
Hikvision warranty policy lists brackets and similar consumable accessories with a 12-month warranty, subject to the applicable purchase terms and authorised distribution conditions.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
